Black bolts hex screw nut track plow bolt and nut for Cutting Edge used in 6V8360/3K9770
Product imformation:
The mechanical grade is 12.9
case hardening is HRC 38-42
Material is 40CR
the surface is treated with bluing
screw thread has two type description
one is the metric system:M12-M24-6g
another is denominator system:1/2-1/4--2A
the specification can be customized.
Design / Structure / Details Pics
Bolt drawing:

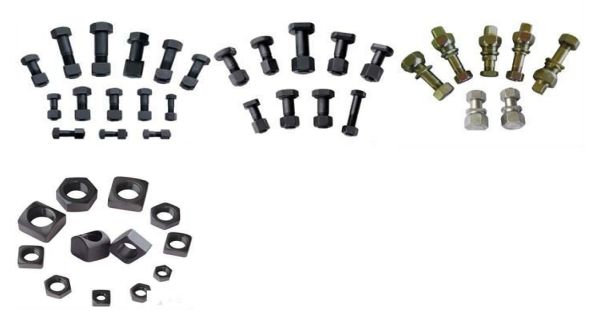

Products show:
Plow bolt testing results:
There are more Bolt & Nut model as follow:
| Specification | Model | |
| TRACK BOLT - 3/4 x 61mm | TB3/4*2.13/32B | 7H3598 |
| TRACK NUT - 3/4 | TB3/4NS | 1S1860 |
| TRACK BOLT - M18 X 59mm | TB18*59B | 79004259 |
| TRACK NUT - M18 | TB18NS | 79009445 |
| TRACK BOLT 1"X90MM(D9N) | TB1*3.35/64B | 6T2638 |
| TRACK NUT 1" (D9N) | TB1NU | 7G0343 |
| TRACK BOLT 5/8"X53MM | TB5/8*2.5/32B | 9G3110 |
| TRACK NUT 5/8" | TB5/8NS | 1M1408 |
| TRACK BOLT M20 X 63MM | TB20*63WB | 6Y0846 |
| TRACK NUT M20 | TB20NS | 9W3361 |
| TRACK BOLT M20 X 56MM | TB20*56WB | 20Y-32-1121A |
| TRACK NUT M20 | TB20NS | 20Y-32-16 |
| TRACK BOLT M22X73MM (330 Exc) | TB22*73B | 8E6103 |
| TRACK NUT M22 (330 Exc) | TB22NS | 9W4381 |
| TRACK BOLT M24X75MM(D155) | TB24*75B | 176-32-11210 |
| TRACK NUT M24(D155) | TB24NS | 176-32-11220 |
| TRACK BOLT M30X96(D375-2/3) | TB30*96B | 195-32-61210 |
| TRACK NUT M30 (D375-2/3) | TB30NU | 195-32-61221 |
| TRACK BOLT 7/8" X 85MM D8N/R/L | TB7/8*3.11/32B | 7T2748 |
| TRACK NUT 7/8" D8N/R/L | TB7/8NU | 7G6442 |
| Segment Bolt (M22 x 1.5 x 71mm) D65/D85 | SM22*70B(D85) | 155-27-12181 |
| Nut - Hex (M22 x 1.5) D65/D85 | SM22NH | 01803-02228 |
| TRACK BOLT M27 X90MM C375 | TB27*90B | 6Y7432 |
| TRACK NUT M27 | TB27NU | 6Y7433 |
| Specifications: | |||
| PLOW BOLT AND NUT FOR CUTTING EDGE | |||
| No. | Part Number | Dimension | Wgt. (kgs) |
| 1 | 4F3646 | 1/2"UNC-13X1-1/2" | 0.055 |
| 2 | 4F3648 | 1/2"UNC-13X1-3/4" | 0.065 |
| 3 | 4F3649 | 1/2"UNC-13X2" | 0.07 |
| 4 | 4F3650 | 1/2"UNC-13X1-1/4" | 0.075 |
| 5 | 4F3651 | 1/2"UNC-13X2-1/2" | 0.08 |
| 6 | 4F3652 | 1/2"UNC-13X2-3/4" | 0.085 |
| 7 | 4F3653 | 5/8"UNC-11X1-3/4" | 0.095 |
| 8 | 4F3654 | 5/8"UNC-11X2" | 0.105 |
| 9 | 3F5108 | 5/8"UNC-11X2-1/4" | 0.115 |
| 10 | 4F3656 | 5/8"UNC-11X2-1/2" | 0.125 |
| 11 | 4F3657 | 5/8"UNC-11X2-3/4" | 0.135 |
| 12 | 4F3658 | 5/8"UNC-11X3" | 0.145 |
| 13 | 4F3665 | 5/8"UNC-11X3-1/2" | 0.16 |
| 14 | 4F0391 | 5/8"UNC-11X3-3/4" | 0.175 |
| 15 | 4F3671 | 5/8"UNC-11X4" | 0.185 |
| 16 | PB521 | 5/8"UNC-11X4-1/2" | 0.205 |
| 17 | PB522 | 5/8"UNC-11X5" | 0.22 |
| 18 | 4F3672 | 3/4"UNC-10X2" | 0.135 |
| 19 | 4F7827 | 3/4"UNC-10X2-1/4" | 0.15 |
| 20 | 5J4773 | 3/4"UNC-10X2-1/2" | 0.165 |
| 21 | 5J4771 | 3/4"UNC-10X2-3/4" | 0.18 |
| 22 | 4F0138 | 3/4"UNC-10X3" | 0.195 |
| 23 | 1J6762 | 3/4"UNC-10X3-1/8" | 0.205 |
| 24 | PB330 | 3/4"UNC-10X3-1/4" | 0.218 |
| 25 | 02090-11290 | 3/4"UNC-10X3-1/2" | 0.225 |
| 26 | 5F8933 | 3/4"UNC-10X3-3/4" | 0.235 |
| 27 | 02091-11200 | 3/4"UNC-10X4" | 0.245 |
| 28 | PB337 | 3/4"UNC-10X4-1/4" | 0.26 |
| 29 | 4F0253 | 3/4"UNC-10X4-1/2" | 0.275 |
| 30 | 02091-11220 | 3/4"UNC-10X5" | 0.295 |
