Bob-Cat T190 SKID STEER Undercarriage Parts

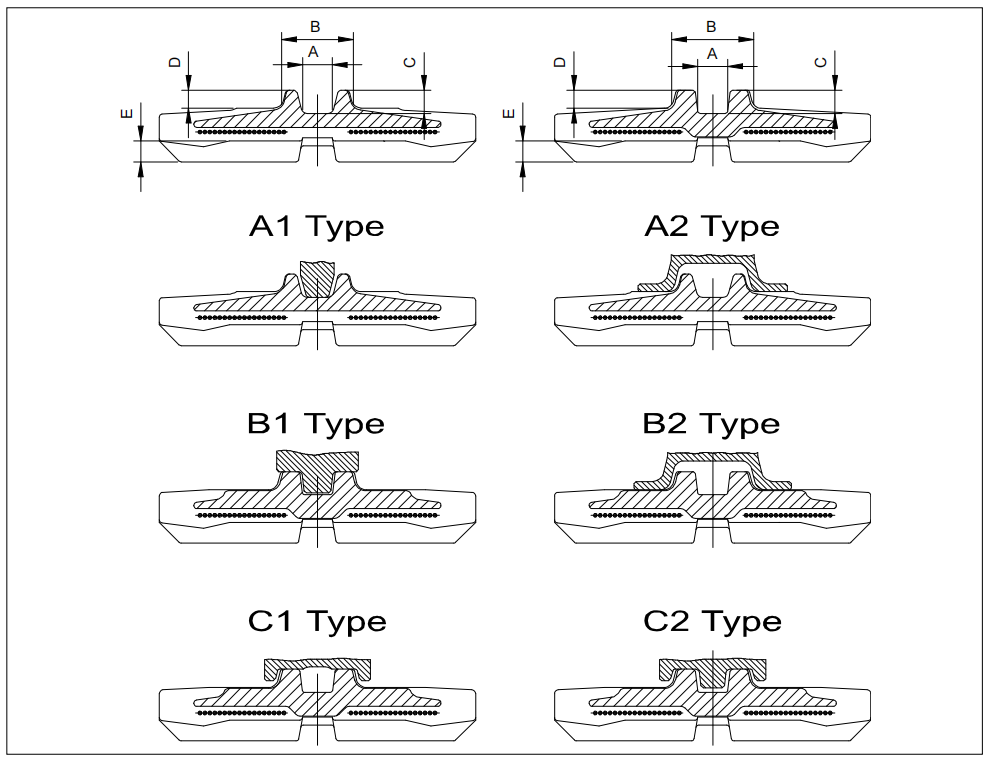

| Rubber Chain(weight:148.03kg) | |||
| PRODUCT FEATURES: | |||
| Width:B320 | Pitch:86 | A:48 | B:95 |
| C:48 | E:36 | Guiding Type:25 | Pattern:A2 |
| VB320X86X49 RUBBER CHAIN BLOCK PATTERN COMPATIBLE WITH THE FOLLOWING VEHICLES: BOB - CAT T180,T180H,T190,T190H,T550,T590 CROSS REFERENCE(ORIGINAL CODES): VPI V50230V |
|||

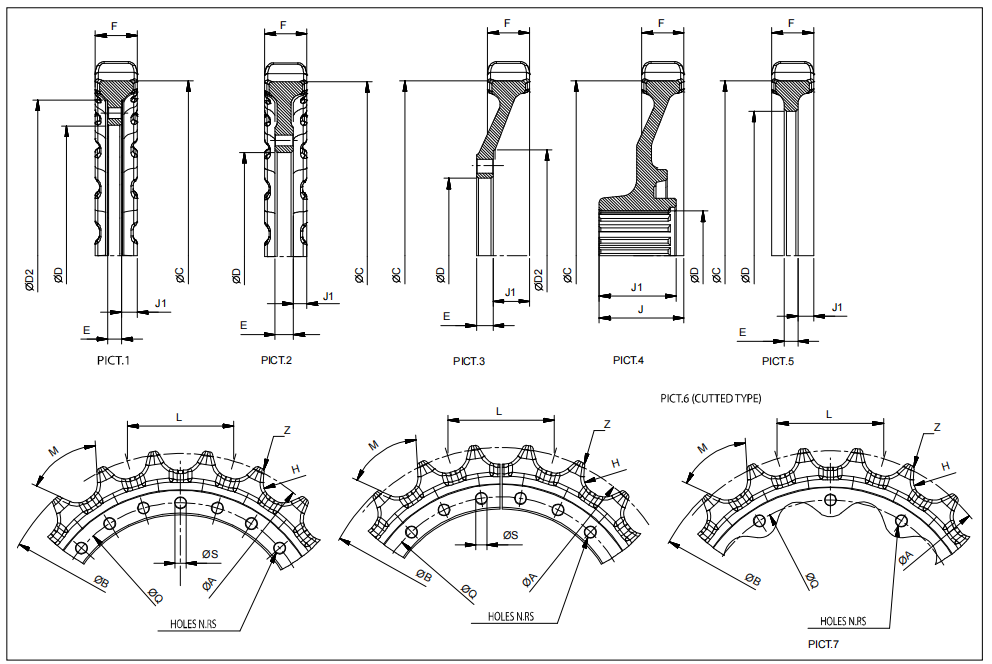

| Sprocket(weight:30kg) | |||
| PRODUCT FEATURES: | |||
| Type:3 | Z:15 | Holes Number:6 | A:410,6 |
| B:425 | C:355 | D:96 | D2: |
| E:18 | F:46 | H:15 | J: |
| J1:121 | L:167 | M○:50 | Q:140 |
| S:20 | |||
| VR291800 SPROCKET COMPATIBLE WITH THE FOLLOWING VEHICLES: BOB - CAT 864, 864F, 864G, T140 FIRST TYPE, T140 SECOND TYPE,T180, T180H, T190, T190H, T200, T250, T300, T300HT320,T630,T650,T750,T770 CROSS REFERENCE (ORIGINAL CODES): BERCO BC2003 BOB - CAT 6726052,6736308 VPI V6726052V |
|||

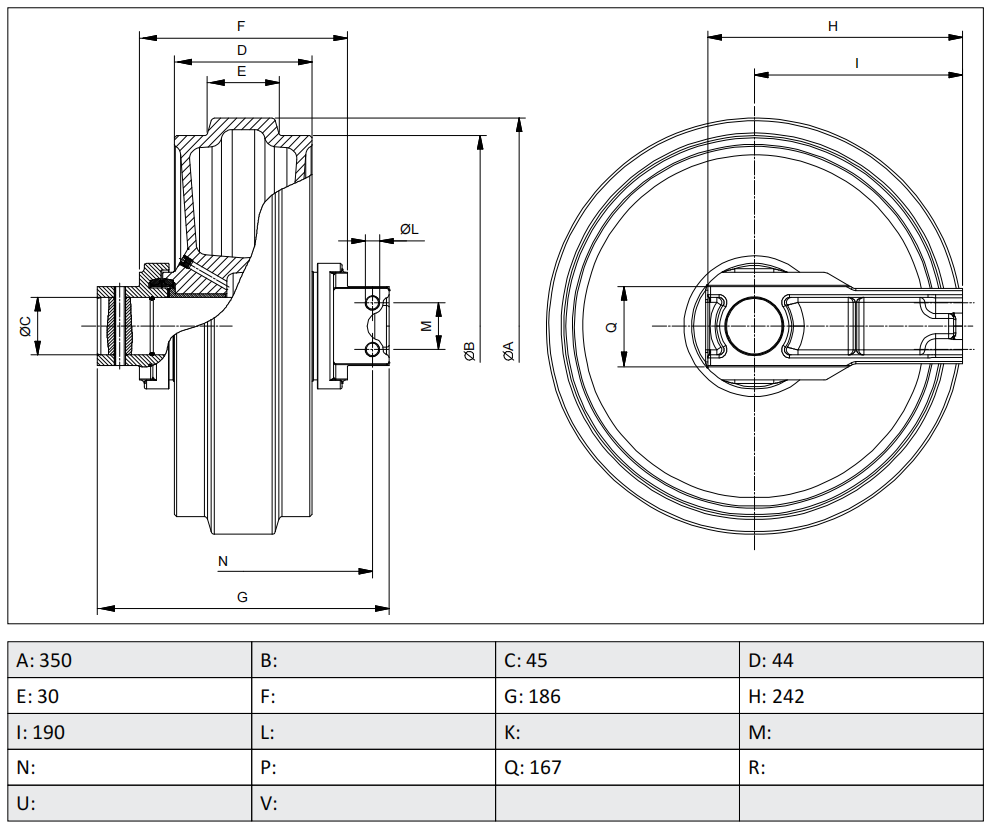

| FRONT IDLER WITH COLLARS REAR(weight:37kg) | |||
| A:350 | B: | C:45 | D:44 |
| E:30 | F: | G:186 | H:242 |
| I:190 | L: | K: | M: |
| N: | P: | Q:167 | R: |
| U: | V: | ||
| VP291804 FRONT IDLER WITH COLLARS FRONT COMPATIBLE WITH THE FOLLOWING VEHICLES BOB - CAT 864,864F, 864G, T140 FIRST TYPE, T140 SECOND TYPE,T180, T180H, T190, T190H, T200, T250, T300, T300HT320,T550,T590,T630，T650，T750，T770 CROSS REFERENCE(ORIGINAL CODES): BOB - CAT 6686903,6693237,6732902 VPI V6732902V |
|||

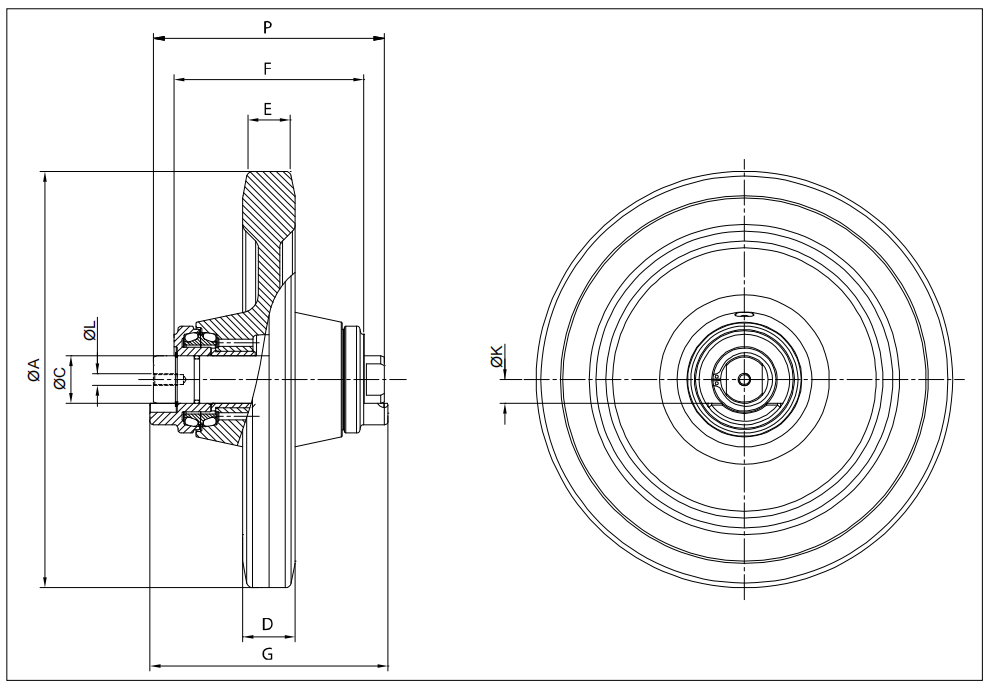

| FRONT IDLER WITH COLLARS REAR(weight:28kg) | |||
| A:290 | B: | C:45 | D:44 |
| E:30 | F:164 | G: | H: |
| I: | L:3/4-10UNC | K: | M: |
| N: | P:193 | Q:134 | R: |
| U: | V: | ||
| VP2918A4 FRONT IDLER WITH COLLARS REAR COMPATIBLE WITH THE FOLLOWING VEHICLES BOB - CAT 864, 864F, 864G, T140 FIRST TYPE, T140 SECOND TYPE, T180, T180H, T190, T190H, T200, T250, T300, T300HT320,T550,T590,T630，T650,T750,T770 CROSS REFERENCE(ORIGINAL CODES) BOB - CAT 6693238,6732903 VPI V6732903V |
|||
| T190 Track Chain(weight:25kg) | |||
| PRODUCT FEATURES:THREADED HOLES | |||
| ∅A:- | ∅B:200 | C:109 | D:180 |
| E:- | F:193 | G:193 | ∅H:40 |
| ∅H1: | D1:190 | E1:250 | L:293,4 |
| I:136 | ∅L:3/4-10UNC | M: | N:- |
| ∅A1:213,5 | C1:30 | T:- | |
| VA2918A0 TRACK ROLLER COMPATIBLE WITH THE FOLLOWING VEHICLES: BOB - CAT 864. 864F. 864G, T140 FIRST TYPE, T140 SECOND TYPE, T180. T180H,T190, T190H. T200. T250. T300. T300HT320,T550,T590,T630,T650,T750,T770 CROSS REFERENCE (ORIGINAL CODES): BERCO BC2173 BOB - CAT 6686632,6689371,6732901 VPI V6732901V |
|||
