Bulldozer Track Adjuster Assy

Short Description:

What are the signs that indicate the need to adjust the track tension on a dozer?
Signs that indicate the need to adjust the track tension on a dozer include uneven track wear, excessive track sagging or slack, increased vibration during operation, difficulty steering or turning, and unusual noises coming from the undercarriage. Proper track tension is crucial for optimal performance and longevity of the dozer's undercarriage components. Regularly checking and adjusting the track tension according to the manufacturer's guidelines can help prevent premature wear and damage to the tracks, sprockets, and rollers. It is recommended to consult the dozer's manual or a qualified technician for proper track tension adjustment procedures.

Send email to us Download catalog

Product Detail

Product Tags

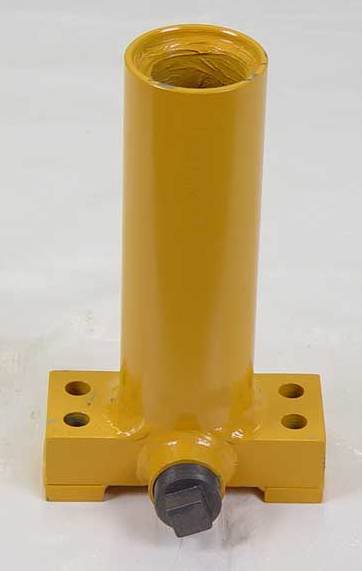

U Yoke Precision:Precision casting , high strength and abrasion resistant

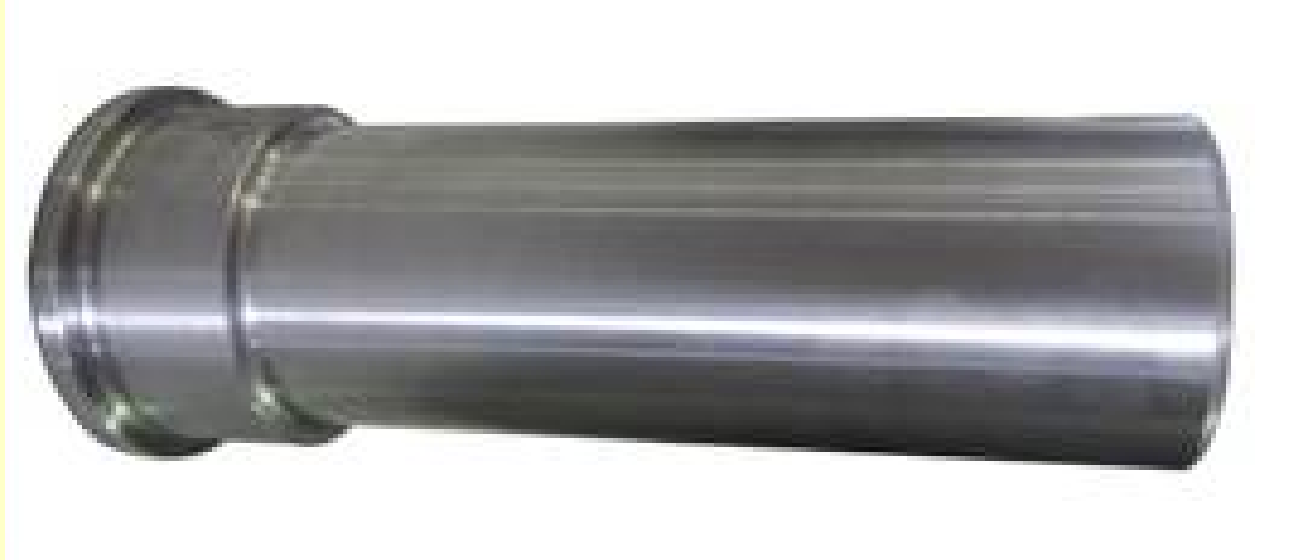

Track cylinder:

1 precision casting 2 Rolling surface treatment processing inside 3 Gloss surface 4 Track cyliner surface finish RA<0.2 (inner and Outer) 5 Track cylinder and screw pin was press together . (other supplier weld them together)

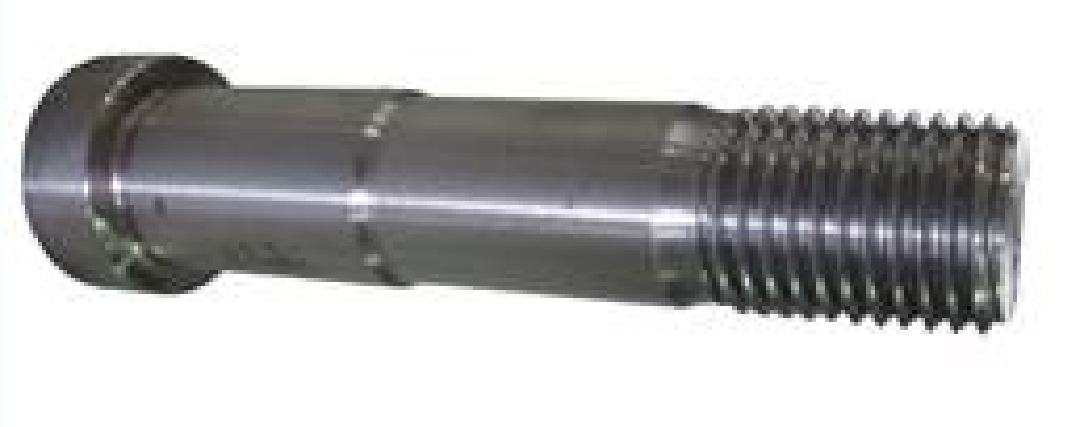

nut+screw:45# steel quenched and tempered

Spring:

1 High strength spring steel

2 Number ofrecolls is the same as original parts

3 Roughness as well as original material

4 Produce according to the OEM standards

5 Taped end spring: stable, OEM need, stonger stress

6 Standard spring option

7 fully inspected

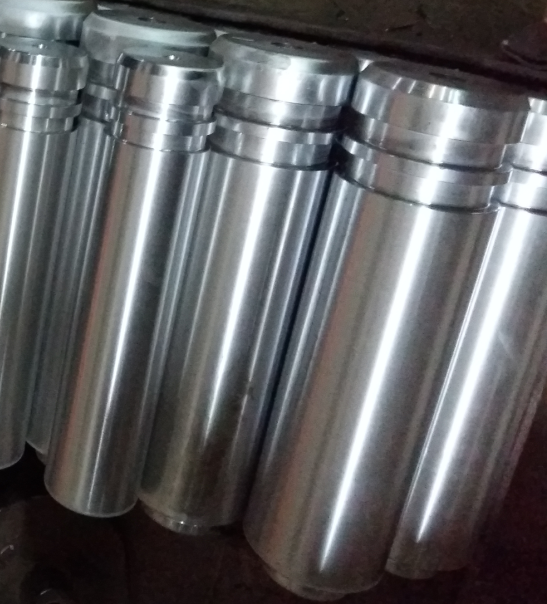

Shaft:

1 key component of track adjuster

2 material 40Cr

3 Using high precision mirror polishing

4 the thickness of chromeplating 0.25mm,(electroplating 0.50mm then gringding to0.25mm toensure surfacae hardness HB700)

5 electroplating-grinding-heat treatment-sand blasting

No.	Part Name	Model	OEM Part No.	U'Kgs	Remarks
1	Track Adjuster Assy	D51EX-22	124-30-64110	110	OEM Quality
2	Track Adjuster Assy	D61EX-12	134-30-63162	215
3	Track Adjuster Assy	D65EX-15	14Z-30-31111	258
4	Track Adjuster Assy	D31PX-22	113-30-34211	64
5	Track Adjuster Assy	D65EX-12	14Y-30-11373	258
6	Track Adjuster Assy	D65EX-16	14X-30-51561	236
7	Track Adjuster Assy	D85EX-15	154-30-73130	310
