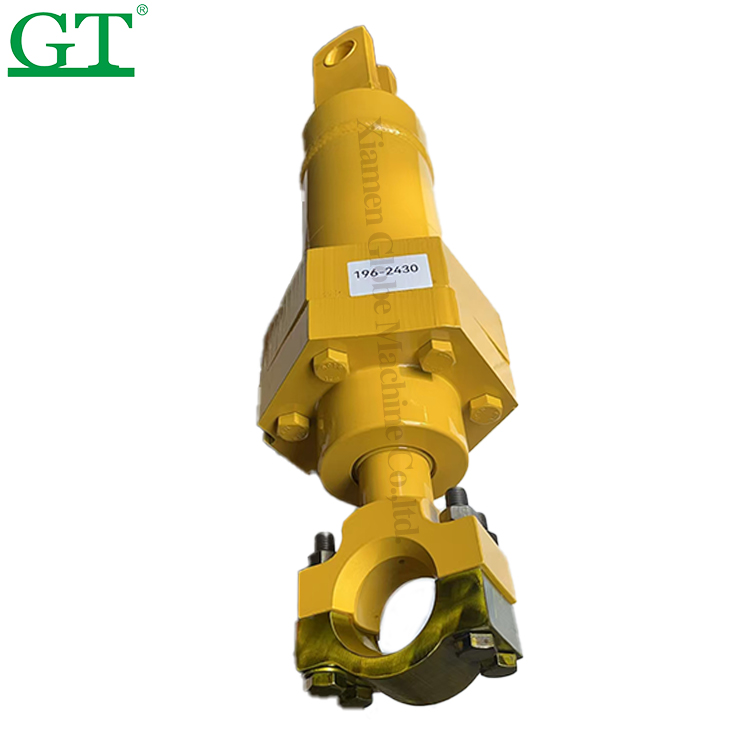

Caterpillar 196-2430 CYLINDER GP-TILT and TIP
Product Description
Name: CYLINDER GP-TILT & TIP 1962430
Brand: Caterpillar
Model: 1962430
Function: This hydraulic cylinder assembly is used to achieve the tilt and flip functions of machine attachments and is an important component in the Caterpillar hydraulic system.
Technical Specifications
Material: Made of thick tube wall, combined with Caterpillar's exclusive oversized seals, it can extend service life.
Performance: Meets the technical specifications of Caterpillar equipment, including power, responsiveness, digging force and speed.
Applicable models
Applicable equipment: Applicable to Caterpillar 824G II, 824H and other models
| Information: |
| BORE DIAMETER 152.4 mm |
| CLOSED LENGTH 915 mm |
| PIN SIZE CAP END 70 mm |
| PIN SIZE ROD EYE 76 mm |
| ROD DIAMETER 69.85 mm |
| STROKE 255 |
| TYPE BOLTED HEAD |

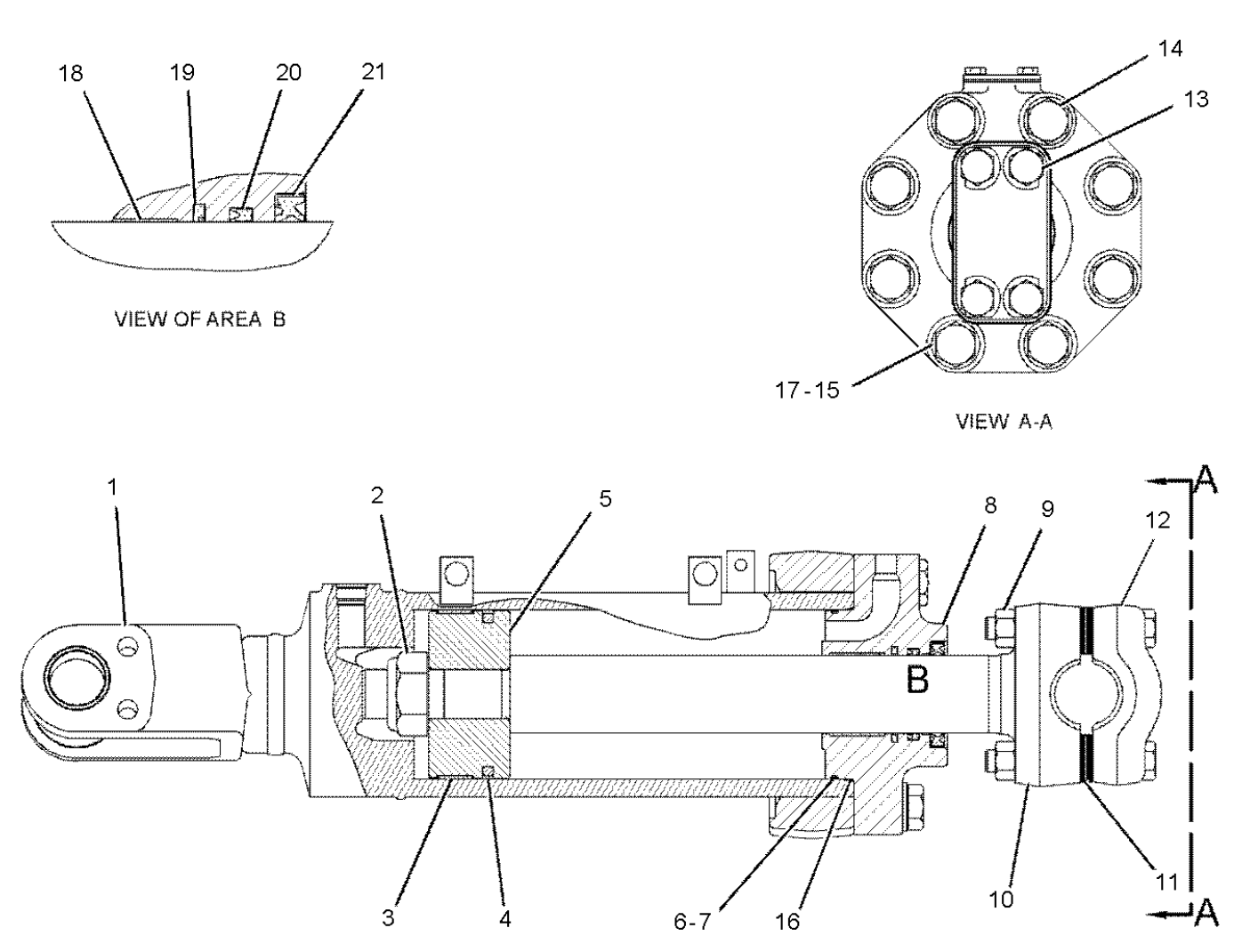

| CATERPILLAR SIS | |||
| Pos. | Part No | Qty | Parts name |
| 1 | 196-2431 | [1] | CYLINDER AS |
| 4J-6374 | [2] | BUSHING | |
| 2 | 5J-5731 | [1] | LOCKNUT (1-3/4-12-THD) |
| 3 | 1J-0708 J | [1] | RING-WEAR |
| 4 | 8C-9173 J | [1] | SEAL AS |
| 5 | 151-5174 | [1] | PISTON |
| 6 | 6J-5541 J | [1] | SEAL-O-RING |
| 7 | 2K-3258 J | [1] | RING-BACKUP |
| 8 | 211-0885 | [1] | HEAD |
| 9 | 6V-7742 M | [4] | NUT-FULL (M20X2.5-THD) |
| 10 | 196-2435 | [1] | ROD AS |
| 11 | 8E-9212 B | [28] | SHIM (0.8-MM THK) |
| 12 | 160-6308 | [1] | CAP-BEARING |
| 13 | 6V-9167 M | [4] | BOLT (M20X2.5X140-MM) |
| 14 | 8T-0667 M | [2] | BOLT (M24X3X100-MM) |
| 15 | 173-9779 M | [6] | BOLT (M24X3X80-MM) |
| 16 | 8T-8377 J | [1] | SEAL-HEAD |
| 17 | 6V-8237 | [8] | WASHER (26X44X4-MM THK) |
| 18 | 8T-6743 J | [1] | RING-WEAR |
| 19 | 167-2207 J | [1] | SEAL AS-BUFFER |
| 20 | 439-2698 J | [1] | SEAL-U-CUP |
| 21 | 446-9333 J | [1] | SEAL-WIPER |
