Caterpillar Excavator And Bulldozer Spares Parts

Short Description:

Track Chains, Rubber Tracks, Bottom Rollers, Top Rollers, Sprockets, Idlers, Recoil Springs, Track Bolts & Nuts and Split Link Bolts for Caterpillar

Send email to us Download catalog

Product Detail

Product Tags

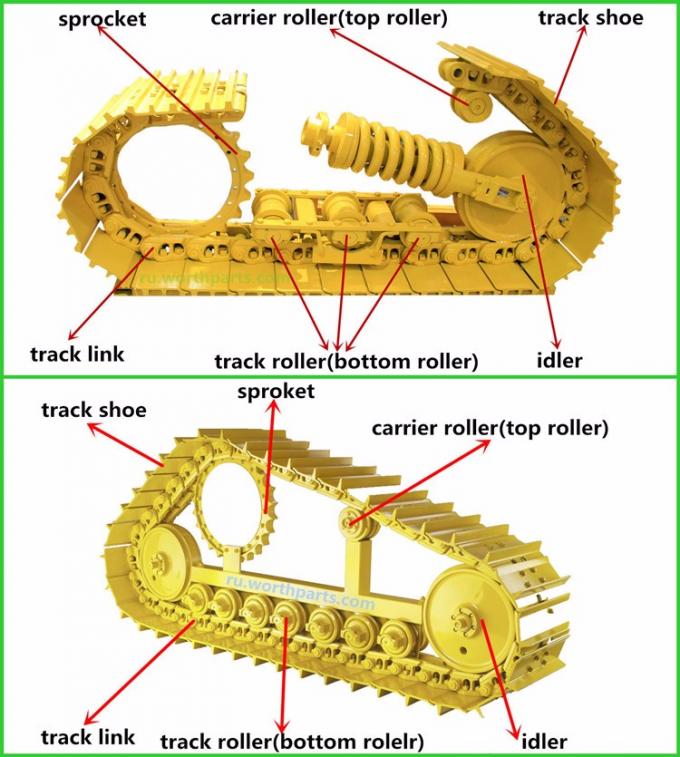

CATERPILLAR undercarriage parts

CATERPILLAR Spare Parts List we can supply

Model & Serial Number(SNif applicable)	#of Links	Link Pitch (mm)	Link Assembly Part Number	Bolt Hole Dia.	Bolt	Nut	Track Roller		Carrier Roller		Sprocket			Idler Group
Model & Serial Number(SNif applicable)	#of Links	Link Pitch (mm)	Link Assembly Part Number	Bolt Hole Dia.	Bolt	Nut	Part No.	Qty.	Part No.	Qty.	Part No.	Bolt Holes	Teeth	with Brackets Part Number
E70	42	135	1028077	13mm	930261	6S3419	932027	10	934333	2	962144	12H		1R8938
E70B	42	135	1028077	13mm	930261	6S3419	1273806	10	1028076	2	962144	12H		1R8928
E110 (3FG1-101, 3GG1-4908 1MJ)	39	171.5	CR4854/39	16mm	7H3597	1M1408	938747	10	936946	2	961479	15H	23T	1048166
E110 (3FG102-UP, 3GG4909-UP)	39	171.5	CR4854/39	16mm	7H3597	1M1408	938747	10	936946	2	993220	16H	23T	1048166
E110B (8MF, 9HF, 5GK)	41	171.5	995398	16mm	7H3597	1M1408	861934	12	4I7345	2	4I7472	15H	21T	4I7337
E120 (1LF)	43	171.5	4I7480	16mm	7H3597	1M1408	938747	12	936946	2	961479	15H		1048166
E120 (1MF)	43	171.5	4I7480	16mm	7H3597	1M1408	938747	12	936946	2	993220	16H	23T	1048166
E120B	43	171.5	4I7480	16mm	7H3597	1M1408	861934	12	4I7345	2	990219	15H	21T	4I7337
E140	44	171.5	932015	16mm	7H3597	1M1408	938747	14	936946	2	968047	22H		936937
E180	48	175.5	931927	18mm	135-32-11211	79039445	957138	14	965260	4	957412	22H	23T	1048170
EL180	52	175.5	931929	18mm	135-32-11211	79039445	957138	16	965260	4	957412	22H	23T	1048170
E200B	45	190.5	964301	20mm	79035814	970120	991109	14	8E5600	4	964327	14H	21T	1132907
EL200B	49	190.5	9W9353	20mm	9W3619	9W3361	1R8669	16	8E5600	4	964327	14H	21T	1132907
E240, E240, B/C	46	190.5	878805	20mm	79035814	964299	957138	14	965260	4	959779	14H	21T	941384
EL240, EL240, B/C	50	190.5	878806	20mm	79035814	964299	957138	16	965260	4	959779	14H	21T	941384
E300	49	190.5	931963	20mm	79035814	964299	854972	14	965260	4	942576	16H	25T	942491
E300B	46	203.2	995998	20mm	14X-32-11210	964299	854973	14	960330	4	994129	16H	23T	960253
EL300, EL300B	50	203.2	992658	20mm	79035814	964299	854973	16	960330	4	994129	16H	23T	960253
E450	50	215.9	7I9091	22mm	7H3599	7T9825	863096	14	946114	6	946133	24H	25T	946105
E650	50	228.6	960260	24mm	930271	930323	857456	14	944831	6	960310	27H	25T	960300
205 3HC/4DC	47	171.5	5W4166	14mm	7H3596	7K2017	8E7494	14	8E7494	2	8E1882	SPLINE	23T	5W4168
205 3HC/4DC	47	171.5	8U3456	16mm	7H3597	1M1408	8E7494	14	8E7494	2	8E1882	SPLINE	23T	5W4168
205 5ZF	45	171.5	8E1442	16mm	7H3597	1M1408	8E7494	14	6K9880	2	8E1882	SPLINE	23T	9W8045
211 4EC/5CC	51	171.5	5W4166	14mm	7H3596	7K2017	8E7494	20	8E7494	2	8E1882	SPLINE	23T	5W4168
211 4EC/5CC	51	171.5	5W9836	16mm	7H3597	1M1408	8E7494	20	8E7494	2	8E1882	SPLINE	23T	5W4168
211 6XG	51	171.5	6T0511	16mm	7H3597	1M1408	8E7494	20	6K9880	4	8E1882	SPLINE	23T	9W8045
213 9XB/3ZC	42	171.5	5W4165	14mm	7H3596	7K2017	8E7494	20	8E7494	2	8E1882	SPLINE	23T	5W4168
213 LONG 9XB/3ZC	51	171.5	5W4166	14mm	7H3596	7K2017	8E7494	20	6K9880	4	8E1882	SPLINE	23T	5W4168
213 1EJ	51	171.5	6T0511	16mm	7H3597	1M1408	8E7494	20	6K9880	4	8E1882	SPLINE	23T	9W8045
215 14Z1-431 57Y1-2030 96L	44	171.5	6A4713	14mm	7H3596	7K2017	3T4352	16	3T4618	4	6A7539 ***	SPLINE	23T	5C6602 *
215 14Z1-431 57Y1-2030 96L	51	171.5	5C4089	14mm	7H3596	7K2017	3T4352	20	3T4618	4	6A7539 ***	SPLINE	23T	5C6602 *
215 14Z432-760	44	171.5	3T3695	16mm	7H3597	1M1408	3T4352	16	3T4618	4	6A7539 ***	SPLINE	23T	5C6602 *
215 14Z432-760	51	171.5	5C0949	16mm	7H3597	1M1408	3T4352	20	3T4618	4	6A7539 ***	SPLINE	23T	5C6602 *
215 14Z761- 57Y2031- 2XC 9YB	51	171.5	6T0511	16mm	7H3597	1M1408	8E7494	20	6K9880	4	3T9153	W/O	23T	8E8907 **
215C/D 9TF 4HG	51	171.5	6T0511	16mm	7H3597	1M1408	8E7494 +	20	6K9880	4	3T9153	W/O	23T	8V9106
225 (51U1-2831, 76U1-1648)	47	171.5	8K0323	16mm	7H3597	1M1408	8E7494 +	16	6K9880	4	3T9153	W/O	23T	8E8907 **
225 (51U1-2831, 76U1-1648)	54	171.5	8K4699	16mm	7H3597	1M1408	8E7494 +	20	6K9880	4	3T9153	W/O	23T	8E8907 **
225 (219/215SA 2ZD1-549	46	175.5	3V9026	16mm	7H3597	1M1408	8E5745	16	5A8374	4	6W2451 ***	8H	23T	5C9558
51U2832-UP 76U1649-UP,
4JC 4FC1-735)
225, 219, 215, SA (2ZD1-549	53	175.5	3V9025	16mm	7H3597	1M1408	8E5745	20	5A8374	4	6W2451 ***	8H	23T	5C9558
51U2832-UP, 76U1649-UP,
4JC 4FC1-735)
225, 219, 215 (SA 215BSA	43	190.5	6Y8183	19mm	1S1859	1S1860	8E4573	16	5A8374	4	9C2646 ***	8H	21T	5C9558
6RG 2SJ 3YD 2ZD550-UP
5CF 4FC736-UP 5XG)
225, 219, 215 (SA/215BSA	49	190.5	6Y8184	19mm	1S1859	1S1860	8E4573	20	5A8374	4	9C2646 ***	8H	21T	5C9558
6RG 2SJ 3YD 2ZD550-UP
5CF 4FC736-UP 5XG)
231, 231D, 229, FB227, 225SA (1NK 5WJ 2LJ 10W, 51U, 76U, 1GE, 1AG)	47	203.2	8E4713	19mm	1S1859	1S1860	8E4576 +	16	3T3206	4	9M3818	W/O	25T	2V8641 *
235 (32K1-1300 64R1-595)	47	203.2	8E4713	19mm	1S1859	1S1860	8E4576 +	16	3T3206	4	9M3818	W/O	25T	2V8641 *
235 (32K1-1300 64R1-595)	54	203.2	8E4714	19mm	1S1859	1S1860	8E4576 +	20	3T3206	4	9M3818	W/O	25T	2V8641 *
235 (5AF, 3WG, 7WC, 1FD, 9PC, 4DG	49	215.9	8E8643	22.2mm	7H3599	7T9825	8E4579	18	1P8717	4	3V4527	SPL	24T	4E8504ED 81X 83X
32K1301-UP, 64R596-UP)	49	215.9	8E8643	22.2mm	7H3599	7T9825	8E4579	18	1P8717	4	3V4527	SPL	24T	4E8504ED 81X 83X
235, 5AF, 3WG, 7WC, 1FD, 9PC.	53	215.9	8E8644	22.2mm	7H3599	7T9825	8E4579	20	1P8717	4	3V4527 ***	SPL	24T	4E8500
4ED, 81X, 83X, 2PG, 4DG,
32K (1301-UP 64R596-UP)
245, 82X1-572, 84X1-597,	51	228.6	8K4753	25.4mm	3T6308	2V0250	8E0831	20	8P6256	6	8K4054	SPL	25T	3V4519 ++
94L1-465, 95V1-989	51	228.6	8K4753	25.4mm	3T6308	2V0250	8E0831	20	8P6256	6	8K4054	SPL	25T	3V4519 ++
245, (6MF, 1SJ, 7ZJ, 4LK, 82X573-UP,	45	260.4	8E7857	25.4mm	2M5657	1S6421	8E0830	18	9G7034	6	7V0753	SPL	22T	6W5557
95V990-UP, 84X598-UP 94L466-UP)	45	260.4	8E7857	25.4mm	2M5657	1S6421	8E0830	18	9G7034	6	7V0753	SPL	22T	6W5557
307	42	135	1028077	13mm	930261	6S3419	1273806	6	1028076	2	5I9336	12H		6I6488
307B	38	154	1452949	16mm	7H3597	1M1408	1273806	10	1362393	2	1309326	12H		1453017
311B	41	171.5	4I7479	16mm	7H3597	1M1408	1519747	12	4I7345	2	4I7472	15H	21T	4I7337
312B	43	171.5	1469175	16mm	7H3597	1M1408	1519747	12	4I7345	2	4I7472	15H	21T	4I7337
314C	46	171.5	1764871	16mm	7H3597	1M1408	1519747	14	4I7345	4	4I7472	15H	21T	4I7337
315, 315B	41	190.5	1028124	20mm	9W3619	9W3361	1634143	12	8E5600	4	1028134	22H	21T	1132907
315L	44	190.5	1028129	20mm	9W3619	9W3361	1175045	14	8E5600	4	1028134	22H	21T	1132907
317, 317N	44	190.5	1028129	20mm	9W3619	9W3361	1634143	14	8E5600	4	1028134	22H	21T	1132907
317BL, 317BLN	45	190.5	1646893	20mm	9W3619	9W3361	1634143	14	8E5600	4	1028134	22H	21T	1132907
318B, 318BL, 318BN	45	190.5	9W9354	20mm	9W3619	9W3361	1634143	14	8E5600	4	8E9805	16H	21T	113290
320BL	49	190.5	9W9353	20mm	9W3619	9W3361	1634143	16	8E5600	4	8E9805	16H	21T	1132907
320B, 320BN	45	190.5	9W9354	20mm	9W3619	9W3361	1634143	14	8E5600	4	8E9805	16H	21T	1132907
320C	45	190.5	9W9354	20mm	9W3619	9W3361	1634143	14	8E5600	4	8E9805	16H	21T	1132907
320L	49	190.5	9W9353	20mm	9W3619	9W3361	1175045	16	8E5600	4	8E9805	16H	21T	1132907
320S	45	203.2	6Y0854	20mm	6Y0846	9W3361	1634147	14	6Y5323	4	6Y4898	18H	21T	1028155
322, 322N	47	190.5	1171373	20mm	9W3619	9W3361	6I9396	14	8E5600	4	8E9805	16H	21T	1156337
322B	47	190.5	1171373	20mm	9W3619	9W3361	1634145	14	8E5600	4	8E9805	16H	21T	1156337
322L, 322LN	51	190.5	1171374	20mm	9W3619	9W3361	6I9396	16	8E5600	4	8E9805	16H	21T	1156337
325	45	203.2	6Y0854	20mm	6Y0846	9W3361	1175046	14	6Y5323	4	6Y4898	18H	21T	1028155
325B	45	203.2	1151848	20mm	6Y0846	9W3361	1634147	14	6Y5323	4	6Y4898	18H	21T	1153696
325BL, 325BLN	48	203.2	1151849	20mm	6Y0846	9W3361	1634147	16	6Y5323	4	6Y4898	18H	21T	1153696
325N, 325L, 325LN	48	203.2	6Y0853	20mm	6Y0846	9W3361	1175046	16	6Y5323	4	6Y4898	18H	21T	1028155
330	45	215.9	6Y2755	22mm	6Y9024	9W4381	1175047	14	6Y5323	4	6Y5685	16H	23T	1028152
330B	45	215.9	1187300	22mm	6Y9024	9W4381	1634149	14	6Y5323	4	6Y5685	16H	23T	1362422
330BL, 330BLN	49	215.9	1187301	22mm	6Y9024	9W4381	1634149	16	6Y5323	4	6Y5685	16H	23T	1362422
345B	49	215.9	1504780	24mm	208-32-51210	208-32-5122A	1787293	16	1247280	4	1243296	20H		1156366
345BL	52	215.9	1504745	24mm	208-32-51210	208-32-5122A	1787293	18	1247280	4	1243296	20H		1156366
350	47	228.6	8E6089	22mm	1434891	9W4381	1524129	16	8E4623	6	8E6974	20H	23T	1358903
350L	51	228.6	8E6090	22mm	1434891	9W4381	1524129	18	8E4623	6	8E6974	20H	23T	1358903
365BL	47	260.4	1421806	27mm	195-32-11210	195-32-11221	1787288	16	6Y8168	6	1419655	21H		1362429
375	47	260.4	6Y7453	27mm	195-32-11210	195-32-11221	1524130	16	6Y8168	6	8E4686	23H	23T	1358904
375L	51	260.4	1070669	27mm	195-32-11210	195-32-11221	1524130	18	6Y8168	6	8E4686	23H	23T	1358904
385B	47	260.4	1740215	30mm	1740221	1740222	1855065	16	1753274	6	2011704	28H	23T	1941157
385BL	51	260.4	1740215	30mm	1740221	1740222	1855065	18	1753274	6	2011704	28H	23T	1941157
