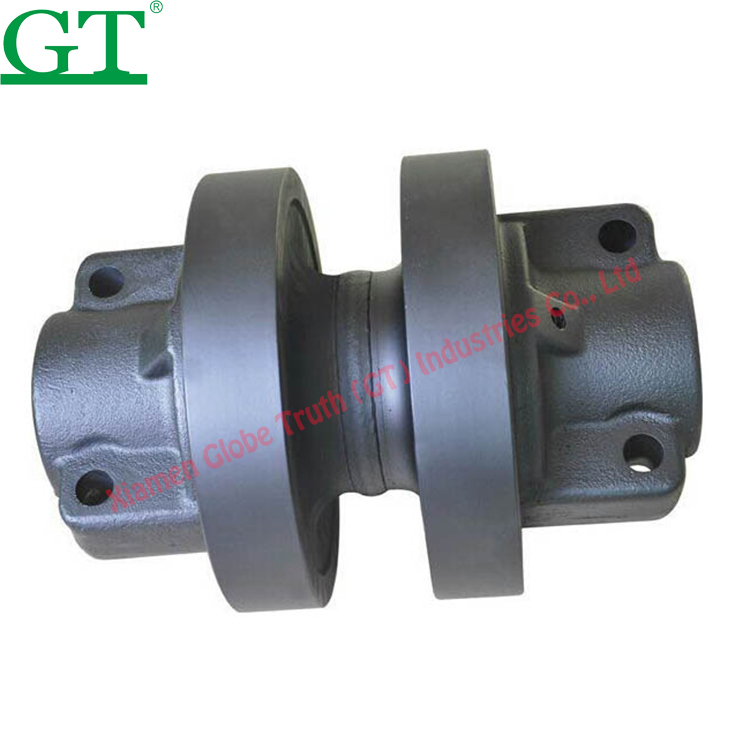

Crawler Crane IHI CCH2500 CCH1500 Track Roller
Material and Technology: The material of the IHI CCH2500 crawler crane track roller is 40Mn2, and the main body and needle roller of the roller have undergone heat treatment and fine processing.
Function: The function of the track roller is to support the weight of the crane and ensure the machine can move on the tracks.
Color and Customization: The color of the IHI CCH2500 track roller is black, but it can also be customized according to customer requirements.
Stock Availability: This track roller is in stock, small orders are accepted.
Production process: The production process includes sawing, forging, normalizing, roughing, quenching and tempering, shot blasting, medium frequency processing, welding, finishing, drilling, tapping, cleaning, assembling, rolling testing, pressure testing, oil injection, spraying and packing.
Type
Single Flange Track Rollers: Single flange track rollers have a flange on one side to guide the track and prevent lateral movement. They are commonly used in crawler cranes that operate on flat surfaces or in applications where stability and alignment are essential.
Double Flange Track Rollers: Double flange track rollers have flanges on both sides to guide the track and provide increased stability and alignment. They are suitable for crawler cranes that operate in rough terrains or uneven surfaces, offering enhanced traction and load distribution.
Bottom Rollers: Bottom rollers, also known as carrier rollers, are located at the bottom of the crawler crane’s undercarriage. They support the weight of the crane and help maintain proper track tension. Bottom rollers are typically larger in size and designed to withstand heavy loads.
Top Rollers: Top rollers, also known as upper rollers or support rollers, are positioned at the top of the undercarriage. They assist in guiding the track and maintaining tension. Top rollers are usually smaller in size compared to bottom rollers.
Other IHI crane undercarriage parts we can supply
| IHI | ||||||
| CH350 | CH500 | CCH250W | CCH280W | CCH350 | CCH350-D3 | CCH400 |
| CCH500 | CCH500-2 | CCH500-3 | CCH500-T | CCH550 | CCH650 | CCH700 |
| CCH800 | CCH800-2 | CCH1000 | CCH1000-5 | CCH1200 | CCH1500 | CCH1500HDC |
| CH1500-2 | CCH1500E | CCH2000 | CCH2500 | CCH2800 | DCH650 | DCH700 |
| DCH800 | DCH1000 | DCH1200 | DCH6020 | DCH15030 | DCH2000 | K300 |
| K400A | K400B | K1000 | ||||
