D375 bulldozer parts segment group OEM no.195-27-33111 5PCS N.W:165KG In Stock
Product Information
| Material | 40SiMnTi |
| Finish | Smooth |
| Colors | Black or yellow |
| Technique | Forging casting |
| Surface Hardness | HRC50-56,deepth:4mm-10mm |
| Warranty time | 2000 hour |
| Certification | ISO9001-9002 |
| FOB Price | FOB Xiamen USD 35-200/Piece |
| MOQ | 2 piece |
| Delivery Time | Within 30 days after contract established |

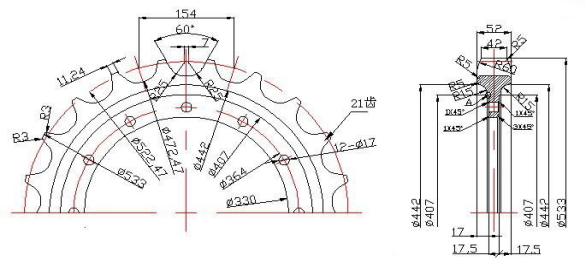

2. Design / Structure / Details Pics
Advantages / Features:
We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.

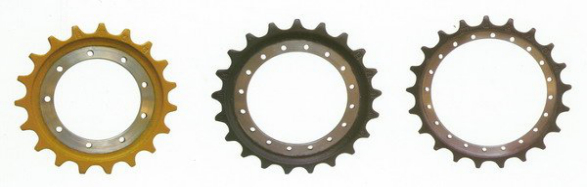

Supply Roller, Sprocket For Crane.
3.Partial list
Open casting mould for customer , according to drawings .
other sprocket parts for :
| Item | Makers | Machine Model | Parts No. |
| Sprocket | HITACHI | ZX55 | 1033596 |
| Sprocket | HITACHI | ZX70 | |
| Sprocket | HITACHI | ZX200-3 | |
| Sprocket | HITACHI | EX200-5/EX200-3/ ZX200 | 1018740 |
| ZX220-2/ZX220- | |||
| Sprocket | HITACHI | 3/EX200-2/EX220-5/ ZX200-2/ZX220-5 | 1010203 |
| Sprocket | HITACHI | ZX230 | 1033091 |
| Sprocket | HITACHI | ZX240-3 | |
| Sprocket | HITACHI | EX300-5/ ZX270/ZX330 | 1022168 |
| Sprocket | HITACHI | EX400 | |
| Sprocket | HITACHI | ZX330-3 | |
| Sprocket | KATO | HD820 | |
| Sprocket | KATO | HD1430 | |
| Sprocket | BERCO | BC2255 | |
| Sprocket | BERCO | FT1387 | |
| Sprocket | BERCO | CR6997 | |
| Sprocket | BERCO | KM4186 | |
| Sprocket | BERCO | CR6998 | |
| Sprocket | BERCO | FT4534 | |
| Sprocket | BERCO | VA3402 | |
| Sprocket | BERCO | FT746A | |
| Sprocket | BERCO | VA324VA324 | |
| Sprocket | BERCO | VA1646 | |
| Sprocket | BERCO | LK588 | |
| Sprocket | BERCO | ID3054 | |
| Sprocket | BERCO | LH2167 | |
| Sprocket | BERCO | CA916 | |
| Sprocket | BERCO | VA3481 | |
| Sprocket | BERCO | WG9A | |
| Sprocket | BERCO | FT2288 | |
| Sprocket | BERCO | VA2790 | |
| Sprocket | BERCO | FT4127 | |
| Sprocket | BERCO | ID2055 | |
| Sprocket | BERCO | CA1118 | |
| Sprocket | NEUSON | 11002HV | 1002304 |
| Sprocket | NEUSON | BAGGER 1402RD,1502RD | 1402054 |
| Sprocket | NEUSON | BAGGER 1702RD,2202RD | 1902229 |
| Sprocket | NEUSON | BAGGER 2702RD,3602RD | 2602013 |
| Sprocket | SUMITOMO | SH300 | |
| Front Idler | PC130 | 203-30-00210 | |
| Front Idler | PC130/PC120/PC100 | 203-30-52112 | |
| Front Idler | PC400 | 208-30-53114 | |
| Front Idler | PC400 | 208-30-53112 | |
| Tooth | PC60 | 20X7014160 | |
| Tooth | PC200 | 2057019570 | |
| Tooth | PC220 | 2067048610 |
| MODAL | GROUP NO. | PART NO. | PITCH | QTY FOR A GROUP | U'WT | GROUP WT(KG) | Qty on stock | BERCO REF |
| (mm) | (kg) | |||||||
| D65 | 16Y-18-00014 | 203 | 9 | 8.2 | 73.8 | 15274 | KM2111 | |
| D85 | 154-27-12273A | 216 | 5 | 15 | 75 | 1298 | KM224 | |
| D155 | 17A-27-11630 | 175-27-22325 | 228 | 9 | 12.1 | 108.9 | 7343 | KM193 |
| D355 | 195-27-12467 | 260 | 9 | 16.8 | 151.2 | 907 | KM341 | |
| D375 | 185-18-00001 | 195-27-33111 | 280 | 5 | 33 | 165 | 2481 | |
| D6C,D6D (5/8")/963 | 6P9102/5S0050 /7P2706 | 8P5837/6T4179 | 203 | 5 | 11.3 | 56.5 | 476 | CR3330 |
| D6H | 7G7212 | 6Y2931 | 203 | 5 | 11.5 | 57.5 | 943 | CR4879 |
| D8K/D8H | 2P9510 | 6T6782 | 228 | 9 | 12.1 | 108.9 | 1934 | CR3144 |
| SD13 | 10Y-18-00043 | 3066 | ||||||
| segment group | 40005 | 1117 | ||||||
| D6N | 106 | 888 | ||||||
| D4H | 3T2082 | 861 | ||||||
| D50 | 131-27-61710 | 425 |
