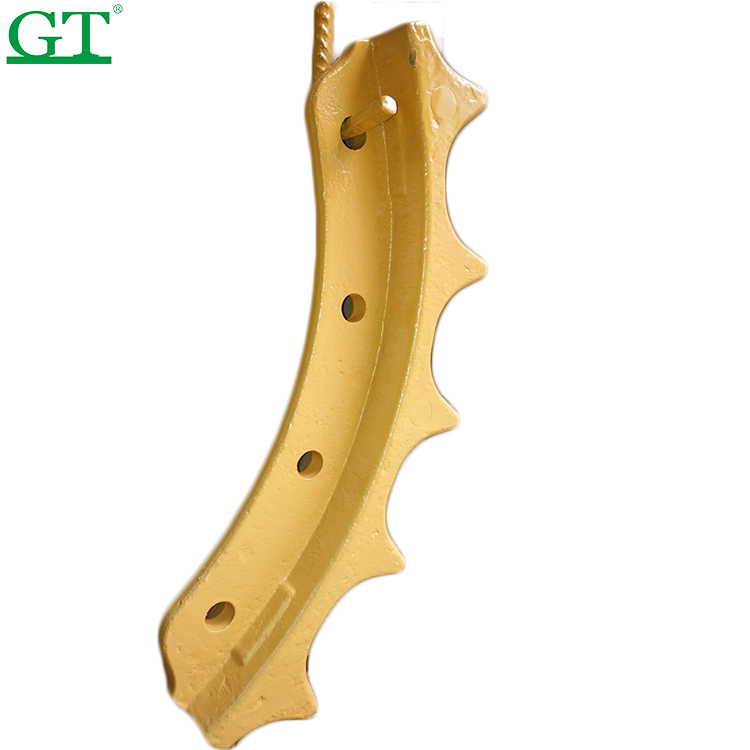

D6D Front Idler Track Chain Segment
SEGMENT GROUP (5 PCS)
VS0106H5
SEGMENT GROUP (5 PCS)
PRODUCT FEATURES:
Weight: 55 Kg.
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
955L 13X-1-UP, 955L 57M-1-UP, 955L 64J-10441-UP, 955L 64J-9258-10440, 955L 71J-5832-6180, 955L 71J-6181-UP, 955L 85J-10129-11003, 955L 85J-11004-UP, 963 18Z-1-1352, 963 18Z-1353-UP, 963 29S-1-1126, 963
6Z- 1450-UP, 963 LGP 11Z-1-590, 963 LGP 11Z-591-UP, 963 LGP 21Z-1-318, 963 LGP 21Z-319-812, 963 LGP 21Z-813-3441, 963 LGP 48Z-185-UP, 963B 9BL-1-UP, 963C 2DS- 1-UP, D6C 69J-1-UP, D6C LGP 49W-1-UP, D6D 19B-1-
UP, D6D 19X-767-UP, D6D 1Y-460-UP, D6D 30X-1-1225, D6D 30X-1226-UP, D6D 36C-1-UP, D6D 37C-1-UP, D6D 38C-1-UP, D6D 5X-1-779, D6D 5X-780-UP, D6D 5YB-1-UP, D6D 74W-1 -1148, D6D 74W-1149-UP, D6D 9FK-1-UP, D6D DD 3X-1-818, D6D DD 3X-819-UP, D6D DD 7XF-1-UP, D6D DD 7YK-1-UP, D6D LGP 32X-1-683, D6D LGP 33X-330-UP, D6D LGP 6HC-1-UP, D6D LGP 6X- 1-818, D6D LGP 6X-819-UP, D6D PS 20X-3042-UP, D6D PS 4X-1-4774, D6D PS 75W-1797-UP, D6E 2MJ-1-UP, D6E 8FJ-1-UP, D6F 5FR-1-UP, D6G 3SR-1-UP
LIEBHERR
LR631B, LR632, PR731B, PR731BL, PR731BM, PR731C, PR731CL, PR731CM, PR732 LITRONIC, PR732B LITRONIC,PR732BL LITRONIC, PR732BM LITRONIC, PR732L LITRONIC, PR732M LITRONIC, SR731
CROSS REFERENCE (ORIGINAL CODES):
BERCO
CR3330, CR5476
CATERPILAR
117-1618, 5S0050, 6P9102
ITM
S01065H0M00, S01065H0N00, S01065H1M00
LIEBHERR
5003812
VPI
VCR3330V

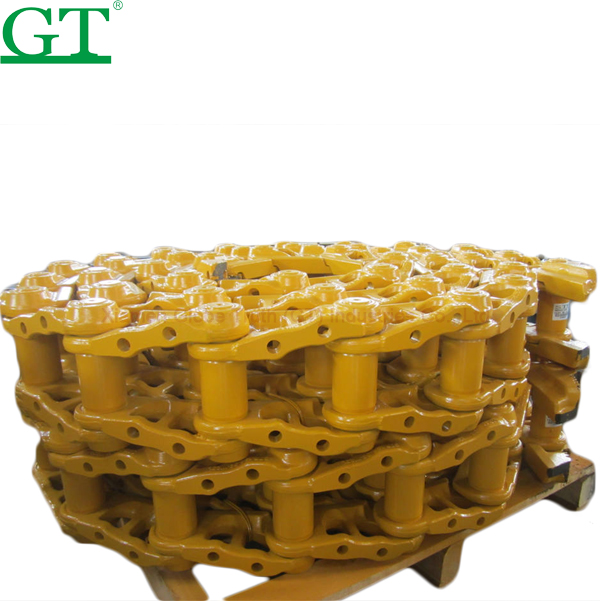

| D6D Track Chain(weight:510kg) | |||
| PRODUCT FEATURES: | |||
| A:280 | B:79,5 | C:91,5 | B1:91,5 |
| C1:78 | N:69 | M:121,5 | D:133,35 |
| E:171,5 | D1:134,9 | E1:158,5 | L:181,2 |
| I:101,5 | ΦR:69,8 | ΦH:44,5 | ΦG:66,63 |
| ΦF:19,5 | ΦT:21 | P:230,9 | W:3/4"-16UNF |
| COMPATIBLE WITH THE FOLLOWING VEHICLES: CATERPILLAR . 955L 13X-1-UP, 955L 57M-1-UP, 955L 64J-10441-UP, 955L 71J-6181-UP,955L 85J-11004-UP, D6D 19B-1-UP,D6D 19X-767-UP, D6D 1Y-460-UP, D6D 30X-1-1225, D6D 30X-1226-UP, D6D 36C-1-UP, D6D 37C-1-UP, D6D 38C-1-UP, D6D 5X-1-779, D6D 5X-780-UP, D6D 74W-1 -1148, D6D 74W-1149-UP, D6D 9FK-1-UP, D6D DD 3X-1-818, D6D DD 3X-819-UP, D6D DD 7XF-1-UP, D6D DD 7YK-1-UP, D6D PS 20X-3042-UP, D6D PS 4X-1-4774, D6D PS 75W-1797-UP, D6F 5FR-1-UP CROSS REFERENCE (ORIGINAL CODES): |
|||

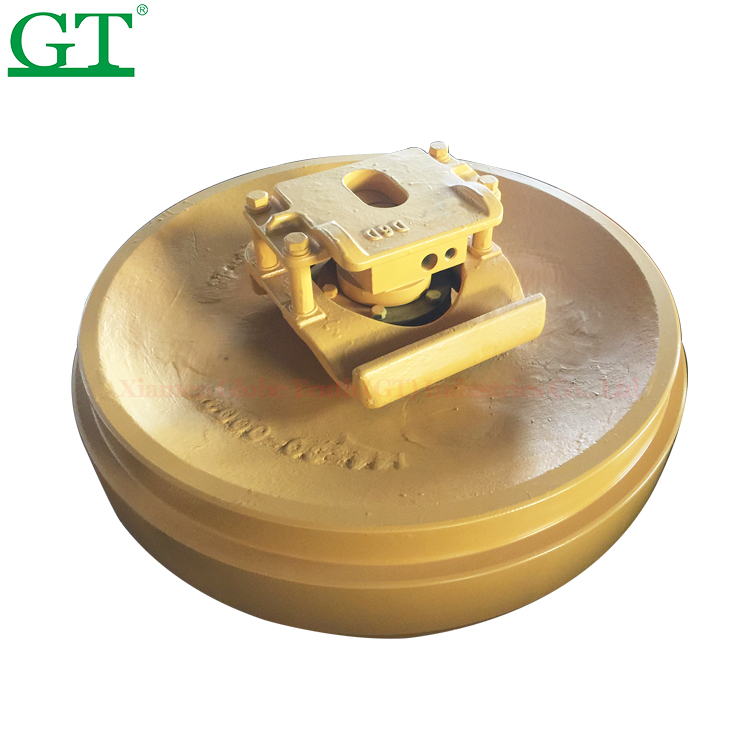

| D6D Front Idler(weight:197kg) | |||
| A:718 | B:678 | C:64 | D:189 |
| E:81,1 | F:256,1 | G:375,4 | H:123,8 |
| I:81,1 | L: | K:86 | M:95,2 |
| N:335,4 | P: | Q:134 | R: |
| U: | V: | ||
| VP0106G4 FRONT IDLER WITH COLL ARS COMPATIBLE WITH THE FOLLOWING VEHICLES: CATERPILLAR 955L 13X-1-UP, 955L 57M-1-UP, 955L 64J-10441-UP, 955L 64J-9258-10440, 955L 71J-5832-6180, 955L 71J-6181-UP, 955L 85J-10129-11003, 955L 85J-11004-UP, D6C 10K-1-9531, D6C 23U-1-UP, D6C 24U-1-UP, D6C 26K-1-1513, D6C 26K-1514-UP, D6C 46J-1-868, D6C 46J-869-UP, D6C 69J-1-UP, D6C 74A-1-3108, D6C 76A-1-6061, D6C DD 99J-1- 1962, D6C DD 99J-1963-UP, D6C LGP 49W-1-UP, D6C SA 17R-650-UP, D6D 19B-1-UP, D6D 19X- 767-UP, D6D 1Y-460-UP, D6D 30X-1-1225, D6D 30X- 1226-UP, D6D 36C-1-UP, D6D 37C-1-UP, D6D 38C-1-UP, D6D 5X-1-779, D6D 5X-780-UP, D6D 5YB-1-UP, D6D 74W-1 -1148, D6D 74W-1149-UP, D6D 9FK-1-UP, D6D DD 3X-1-818, D6D DD 3X-819-UP, D6D DD 7XF-1-UP, D6D DD 7YK-1-UP, D6D LGP 32X-1 -683, D6D LGP 33X-330-UP, D6D LGP 6HC-1-UP, D6D LGP 6X-1-818, D6D LGP 6X-819-UP, D6D PS 20X-3042-UP, D6D PS 4X-1-4774, D6D PS 75W-1-1796, D6D PS 75W-1797-UP, D6E 2MJ-1-UP, D6E 8FJ-1-UP, D6F 5FR-1-UP, D6G 3SR-1-UP CROSS REFERENCE (ORIGINAL CODES): |
|||
