dozer undercarriage D9R 195-9955/195-9956 track roller bottom roller
Product Information
| Material | 50Mn/40SiMnTi |
| Finish | Smooth |
| Colors | Black or yellow |
| Technique | Forging casting |
| Surface Hardness | HRC50-56,deepth:4mm-10mm |
| Warranty time | 2000 hour |
| Certification | ISO9001-9002 |
| MOQ | 2 piece |
| Delivery Time | Within 30 days after contract established |

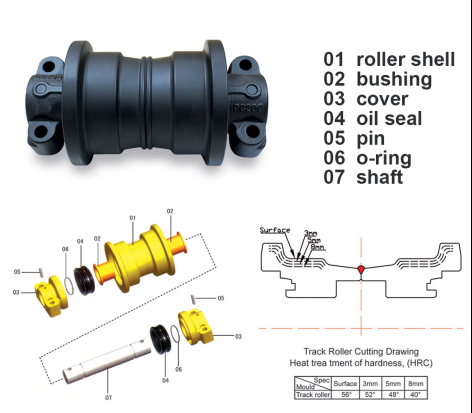

2. Design / Structure / Details Pics
Advantages / Features:
1).Each roller shaft is engineered drop-forged and machined by the utilization of the most modern technological advances known to the industry , Grinding and finishing methods , etc to guarantees max strength , max life .
2).Each roller shell is carefully heat treated to ensure long wear life and stress resistance .
3).surface hardness HBN460 for reduced wear and longer life, adding value to your products further to your business by maximizing durability of your products.
Partial list
Thousands type of track roller , We can make products according to Customer's requirement . Some specification as follow .
track roller parts:
| PC300LC-5 | 207-32-00110 | PC450-6 | 208-30-00300 |
| PC300LC-6 | 207-32-00310 | PC450LC-6 | 208-32-00310 |
| PC300LC-7 | 207-32-00310 | PC600LC-6 | 21M-32-00200 |
| PC350-6 | 207-30-00300 | PC650-1 | 209-32-00022 |
| PC350LC-6 | 207-32-00310 | PC650-3 | 209-32-00022 |
| PC360-5 | 208-32-00101 | PC650-5 | 209-32-00022 |
| PC360LC-5 | 208-32-00111 | PC650LC-3 | 209-32-00030 |
| PC400-1 | 208-32-00011 | PC650LC-3 | 209-32-00030 |
| PC400-3 | 208-32-00030 | PC650SE-5 | 209-32-00022 |
| PC400-3 | 208-32-00101 | PC710-5 | 209-32-00022 |
| PC400-5 | 208-32-00101 | PC710SE-5 | 209-32-00022 |
| PC400-6 | 208-32-00300 | PC750-6 | 209-32-00022 |
| PC400LC-1 | 208-32-00021 | PC750LC-6 | 209-32-00030 |
| PC400LC-3 | 208-32-00040 | PC1000-1 | 21N-32-00010 |
| PC400LC-3 | 208-32-00111 | PC1000LC-1 | 21N-32-00020 |
| PC400LC-5 | 208-32-00141 | PC1100-6 | 21N-32-00101 |
| PC400LC-6 | 208-32-00310 | PC1100LC-6 | 21N-32-00101 |
