dozer undercarriage D9R 195-9955/195-9956 track roller bottom roller

Short Description:

Track roller/bottom rollers have been carefully engineered to transfer the weight of a fully laden machine through the undercarriage and tracks and down to the ground while reducing the forces working against the machine during operation and maintaining optimum performance no matter the tasking.

Send email to us Download catalog

Product Detail

Product Tags

Product Information

Material	50Mn/40SiMnTi
Finish	Smooth
Colors	Black or yellow
Technique	Forging casting
Surface Hardness	HRC50-56,deepth:4mm-10mm
Warranty time	2000 hour
Certification	ISO9001-9002
MOQ	2 piece
Delivery Time	Within 30 days after contract established

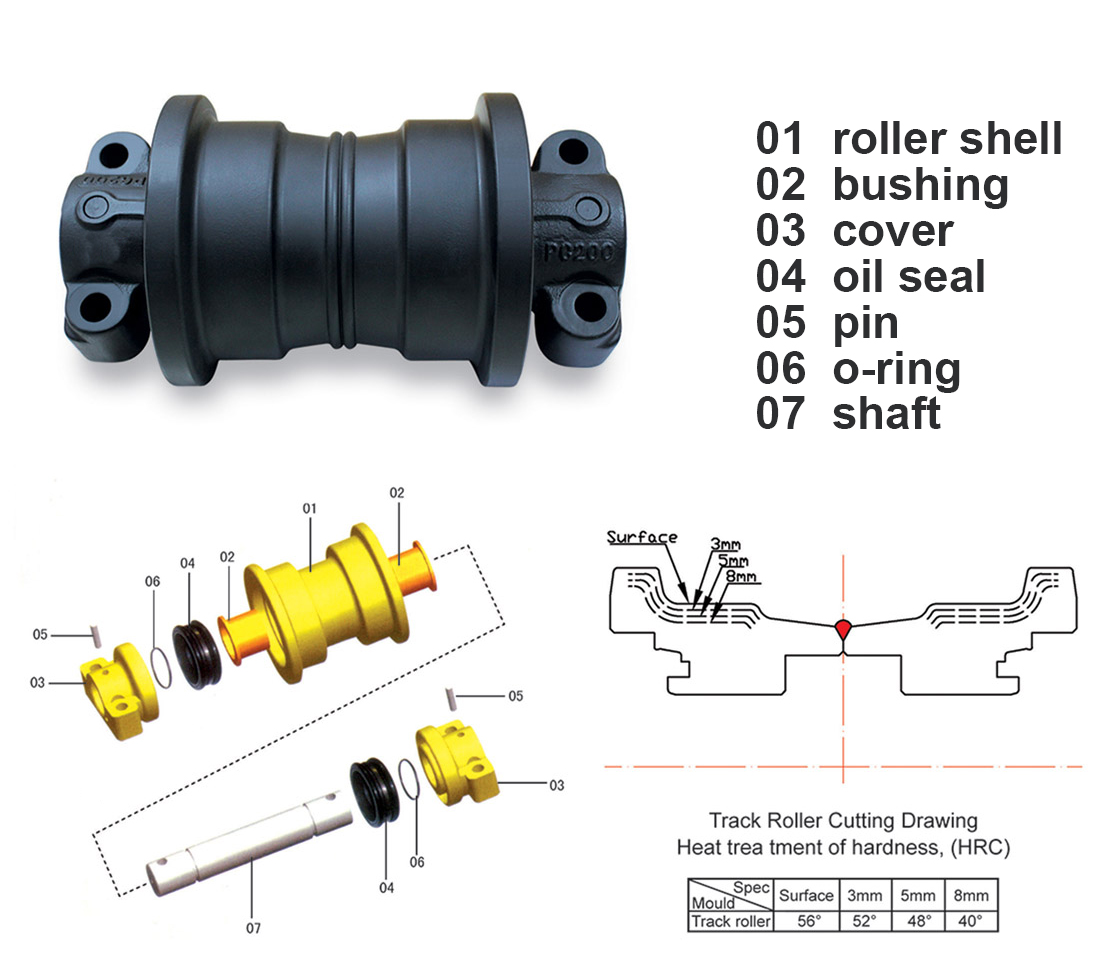

Design / Structure / Details Pics

Partial list

Thousands type of track roller , We can make products according to Customer's requirement . Some specification as follow .

track roller parts:

PC300LC-5	207-32-00110	PC450-6	208-30-00300
PC300LC-6	207-32-00310	PC450LC-6	208-32-00310
PC300LC-7	207-32-00310	PC600LC-6	21M-32-00200
PC350-6	207-30-00300	PC650-1	209-32-00022
PC350LC-6	207-32-00310	PC650-3	209-32-00022
PC360-5	208-32-00101	PC650-5	209-32-00022
PC360LC-5	208-32-00111	PC650LC-3	209-32-00030
PC400-1	208-32-00011	PC650LC-3	209-32-00030
PC400-3	208-32-00030	PC650SE-5	209-32-00022
PC400-3	208-32-00101	PC710-5	209-32-00022
PC400-5	208-32-00101	PC710SE-5	209-32-00022
PC400-6	208-32-00300	PC750-6	209-32-00022
PC400LC-1	208-32-00021	PC750LC-6	209-32-00030
PC400LC-3	208-32-00040	PC1000-1	21N-32-00010
PC400LC-3	208-32-00111	PC1000LC-1	21N-32-00020
PC400LC-5	208-32-00141	PC1100-6	21N-32-00101
PC400LC-6	208-32-00310	PC1100LC-6	21N-32-00101
