KOMATSU Dozer D65EX-12 Undercarriage Parts

Short Description:

What are the signs that indicate the need for replacement of undercarriage parts in KOMATSU Dozer D65EX-12?
Some signs that indicate the need for replacement of undercarriage parts in a KOMATSU Dozer D65EX-12 include excessive track wear, uneven track tension, track slippage, increased noise during operation, reduced traction, and visible damage such as cracks or missing components. It is important to regularly inspect the undercarriage components to ensure optimal performance and prevent further damage to the machine. Regular maintenance and timely replacement of worn out parts can help extend the lifespan of the dozer and improve its overall efficiency.

Send email to us Download catalog

Product Detail

Product Tags

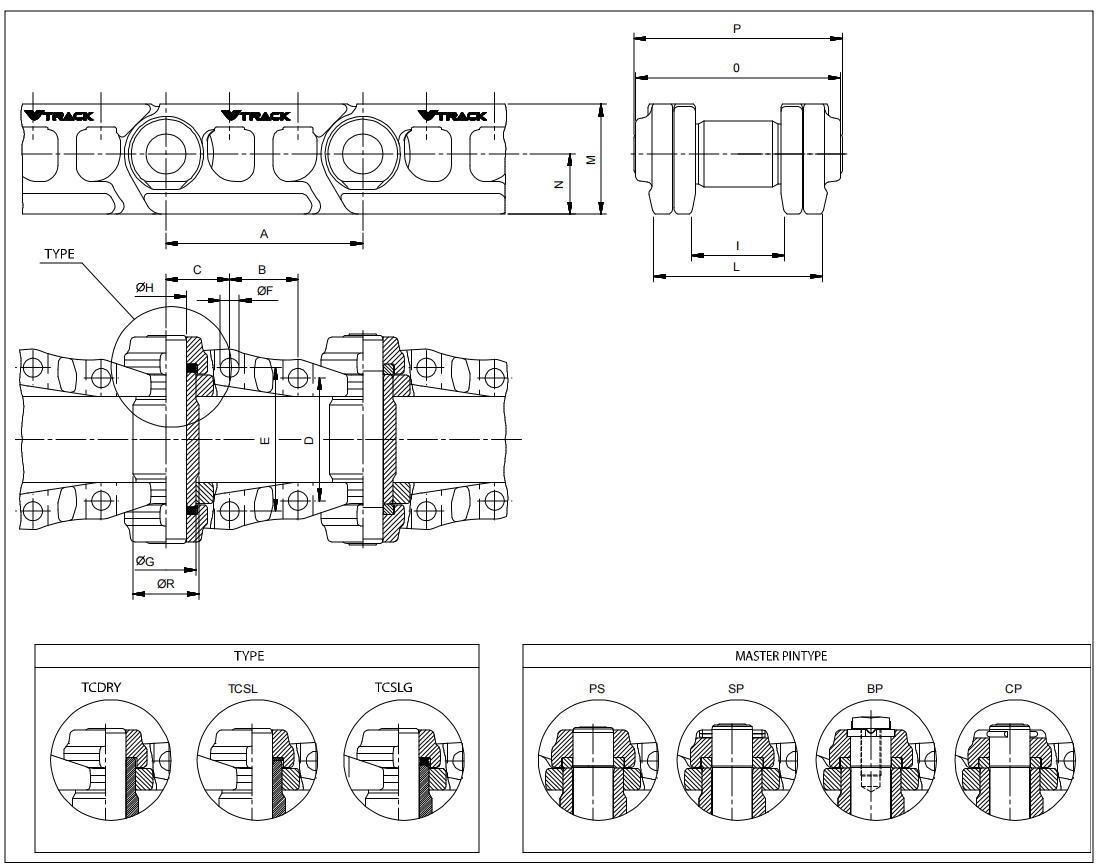

D65EX-12 Track Chain(weight:665kg)
PRODUCT FEATURES:
Type:TCSLG	A:203,2	B:72,2	C::58
D:138	E:178	ΦF:20,3	ΦR:73
ΦH:44,75	I:106,3	L:242	M:66,8
N:71	O:234	P:242	ΦG:66,8
M.P.Tyoe:PS
TRACK CHAIN SEALED AND GREASED COMPATIBLE WITH THE FOLLOWING VEHICLES: KOMATSU D65E 12 60001-UP, D65EX 12 60001-UP CROSS REFERENCE (ORIGINAL CODES): BERCO KM2095/39 ITM E40657E0M00039 KOMATSU 14X-32-00100 VPI VKM2095/39V

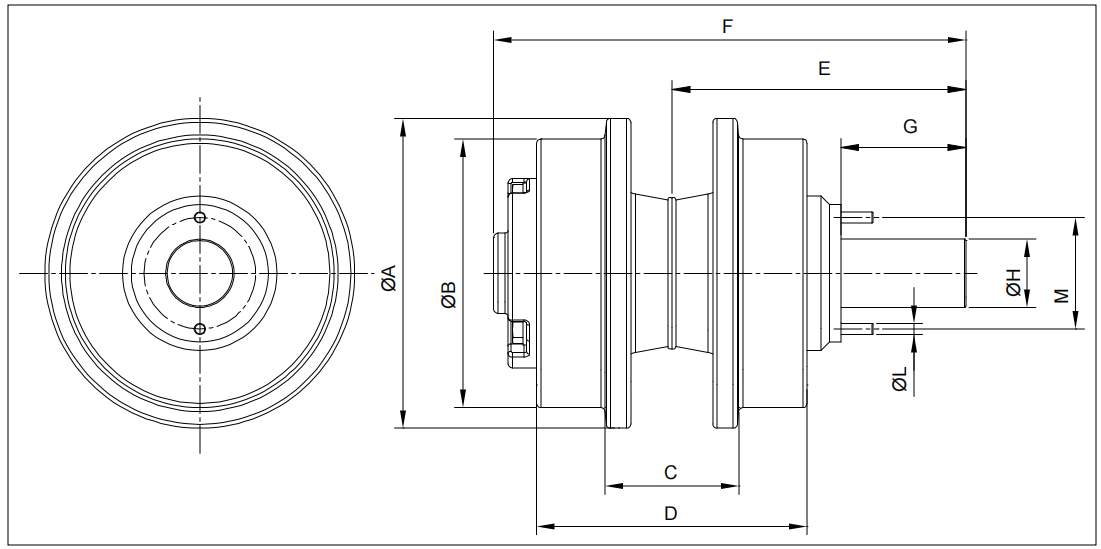

D65EX-12 Carrier Roller (weight 34kg)
PRODUCT FEATURES:
ΦA:215	ΦB:185	C:100	D:200
E:201	F:301	G:93	ΦH:61
ΦL:	M:	N:	T:
P:	Tipo:

CARRIER ROLLER COMPATIBLE WITH THE FOLLOWING VEHICLES: KOMATSU D60A 8 45409-UP,D60A-11 50001-UP,D60E 847641-60000,D60P 8 45205-UP,D6OP-11 50001-UP, D60P-1260001-UP,D65A 8 46048-UP,D65E 12 60001-UP,D65E8 47630-60000, D65EX 12 60001-UP, D65EX 15 67001.UP, D65EX 16 80001-UP, D65EX 17 1001-UP, D65EX-18 90001-UP, D65P 12 SWAMP SHOE 60001-UP, D65P 846288-60000, D65PX 12 60001-UP, D65PX 12 SWAMP SHOE 60001-UP, D65PX 15 67001-UP, D65PX 16 80001.UP, D65PX 17 10001-UP, D65WX 17 1001-UP,D65WX 18 90001-UP, D65WX-15 67001-UP,D75A 1 50329-UPD85ESS 2A5508-UP CROSS REFERENCE(ORIGINAL CODES): BERCO KM118, KM2105 ITM C40651E0M00 KOMATSU 141-30-00560,141-30-00561,141-30-00562,141-30-00563,141-30-00564,141-30-00565,141-30-00566,14130-00566E,144-81-30050,144-81-30051,144-81-30052,144-81-30053,144-81-30054,14X-30-00140,14X-30.00141,14X-30-00142,14X-30-00143,14X-30-00180,14X-30-0018114X-30-07200.14X-30-15001 VPI VKM2105V

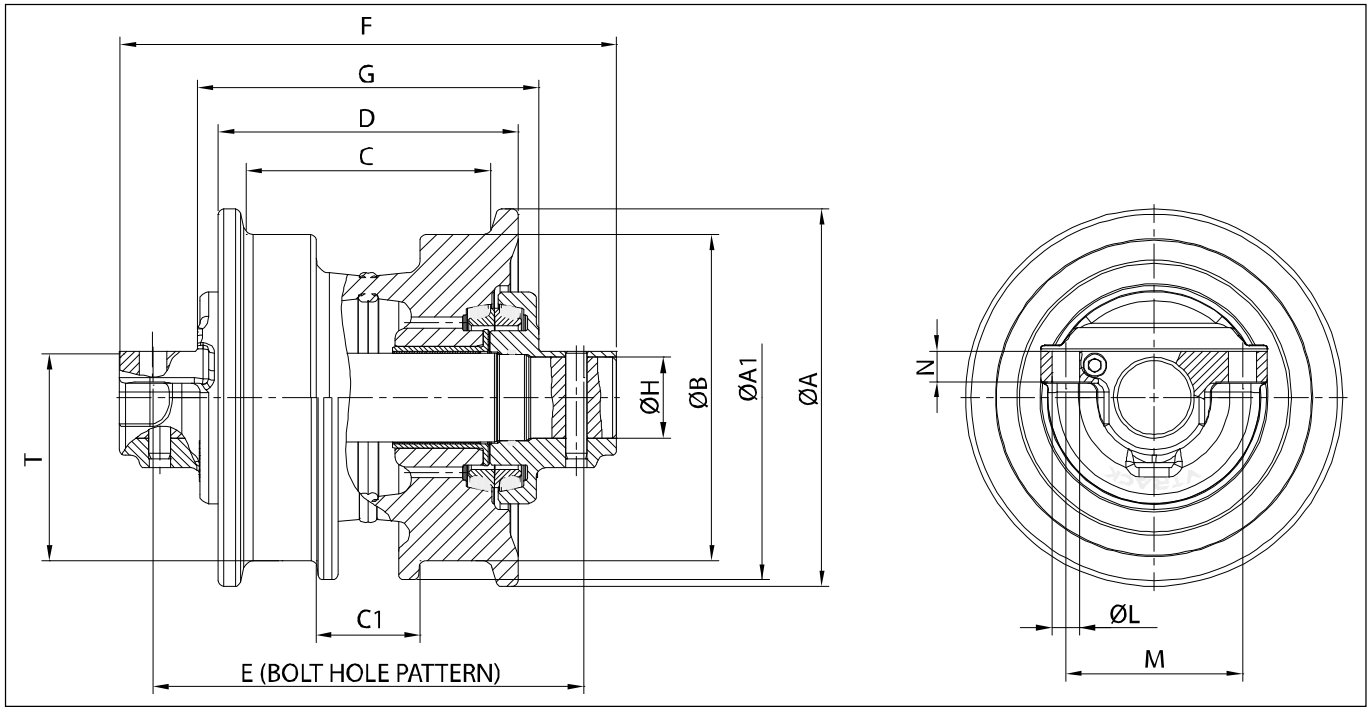

D65EX-12 Track Roller SF(weight 56kg)
PRODUCT FEATURES:
ΦA:240,5	ΦB:210,5	C:195	D:234,5
E:320,5	F:400,5	G:258,5	ΦH:65
ΦH1	ΦL:19	M:114	N:33,5
ΦA1	C1	T:121,25
TRACK ROLLER SF COMPATIBLE WITH THE FOLLOWING VEHICLES: KOMATSU D60A 8 45409-UP, D60A-11 50001-UP, D60E 8 47641-60000, D60P 8 45205-UP, D60P-11 50001-UP, D60P-12 60001-UP, D65A 8 46048-UP, D65E 12 60001-UP, D65E 8 47630-60000, D65EX 12 60001-UP, D65EX 15 67001UP, D65EX 16 80001-UP, D65EX 17 1001-UP, D65EX-18 90001-UP, D65P 12 SWAMP SHOE 60001-UP, D65P 8 46288-60000, D65PX 12 60001-UP, D65PX 12 SWAMP SHOE 60001-UP, D65PX 15 67001-UP, D65PX 16 80001UP, D65PX 17 10001-UP, D65WX 17 1001-UP, D65WX 18 90001-UP, D65WX-15 67001-UP, D75A 1 50329-UP, D85ESS 2A 5508-UP CROSS REFERENCE (ORIGINAL CODES): BERCO KM2101 ITMA40650E0M00,A40650E0Y00 KOMATSU 14X-30-00030,14X-30-00031,14X-30-00033,14X-30-00035,14X-30-00080,14X-30-00081, 14X-30-00082, 14X30-00083, 14X-30-00083E, 14X-30-00084, 14X-30-00085, 14X-30-00086, 14X-30-00087,14X-30-00088,14X-3000126,14X-30-00127,14X-30-01020, 14X-30-14100 KOMATSU ALL MAKES ZZ14X3000083 VPI VKM2101V

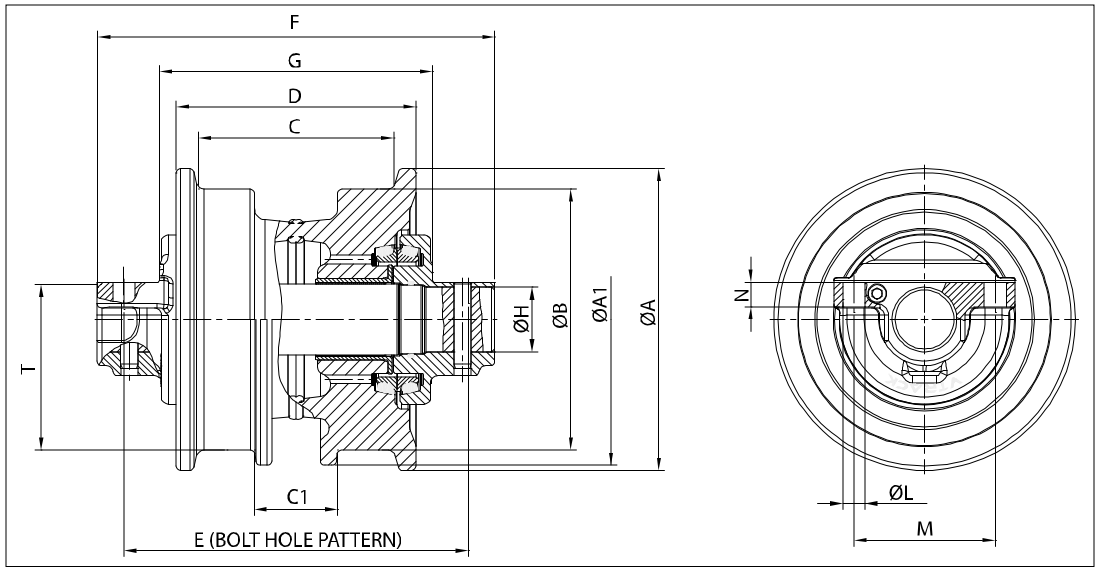

D65EX-12 Track Roller DF(weight 65kg)
PRODUCT FEATURES:
ΦA:240,5	ΦB:210,5	C:195	D:234,5
E:320,5	F:400,5	G:258,5	ΦH:65
ΦH1	ΦL:19	M:114	N:33,5
ΦA1:236,5	C1:102	T:121,25
TRACK ROLLER SF COMPATIBLE WITH THE FOLLOWING VEHICLES: KOMATSU D60A 8 45409-UP, D60A-11 50001-UP, D60E 8 47641-60000, D60P 8 45205-UP, D60P-11 50001-UP, D60P-12 60001-UP, D65A 8 46048-UP, D65E 12 60001-UP, D65E 8 47630-60000, D65EX 12 60001-UP, D65EX 15 67001UP, D65EX 16 80001-UP, D65EX 17 1001-UP, D65EX-18 90001-UP, D65P 12 SWAMP SHOE 60001-UP, D65P 8 46288-60000, D65PX 12 60001-UP, D65PX 12 SWAMP SHOE 60001-UP, D65PX 15 67001-UP, D65PX 16 80001UP, D65PX 17 10001-UP, D65WX 17 1001-UP, D65WX 18 90001-UP, D65WX-15 67001-UP, D75A 1 50329-UP, D85ESS 2A 5508-UP CROSS REFERENCE (ORIGINAL CODES): BERCO KM2102 ITM B40650E0M00,B40650E0Y00 KOMATSU 14X-30-00040,14X-30-00041,14X-30-00043,14X-30-00045,14X-30-00090,14X-30-00091, 14X-30-00092, 14X-30-00093, 14X-30-00095, 14X-30-00096, 14X-30-00097, 14X-30-00135, 14X-30-00136,14X-30-01030,14X-30-14200 KOMATSU ALL MAKES ZZ14X3000092 VPI VKM2102V
