Komatsu Dozer Blade Cutting Edge 4T6381
1.Products description
Dozer blades information
| Name | Dozer blades, blade cutting edge |
| Part No. | 4T6381 |
| Unit weight | 97.7kgs |
| Dimension | 1353*330*30 9*1" |
| Bolt and nut | 4J9208+ 2J3507 |
| Alternative part no. | 3G9264 |
| Application | CAT Dozer D8N |
| Service | OEM Part Number or Customized |
| Popular item | 7T9125, 6Y5540, 4T6381, 7T5702, 9W1878, 4T3004，4T3009 , 4T8940, 4T2315, 4T2988, 3G4282 , 4T6659 , 4T3010 , 7T9126, 7T3492, 9U8057 , 9W5232, 9W4500, 9W7043, 9W6656, 9W4494, 135-9395, 4T6230, 112-2471 ,T198126, T120980，T120979, T162841, 710088S, 710064S, 720074NS, etc. |
| Material | Heat-treated Manganese Steel 16Mn and Heat-treated Boron Steel 30MnB |
| Color | Yellow or as customer required |
| Logo | No logo or customer logo by painting or stamping |
| Package | Plywood Pallets with plastic wrap |
| MOQ | 1000kg for one order |
| Delivery time | 20-30 days after order confirmation |
| Thickness | 13mm to 80mm |
| Different type | Cutting edge: Double bevel flat (DBF) cutting edge ||, DBF Cutting Edges |>, DBF Cutting Edges < >, DBF serrated cutting edge |
| Dozer blades | Dozer cutting edges and end bits, cat cutting edge, caterpillar blades, caterpillar cutting edge, dozer cutting edges, cutting edges and end bits, bulldozer cutting edge, etc. |

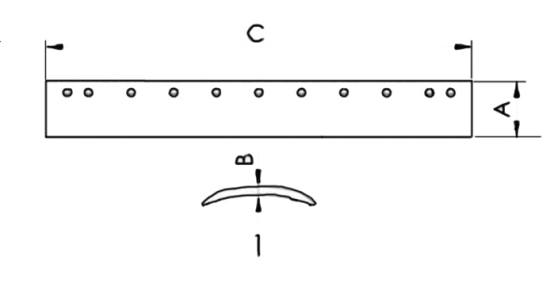

2.Products design
Demension:
| Length | 2438 | Bolt size | 3/4" |
| Width | 203 | Holes | 17 |
| Thickness | 16 |
3.Part of the grader blades are as follows:
| Grader Blades | |||
| P/N | Main Dimension (mm) | Holes | Dia. |
| 5D9553 | 1828X152X16 | 13 | 5/8" |
| 5D9554 | 2133X152X16 | 15 | 5/8" |
| 5D9556 | 1828X152X19 | 13 | 5/8" |
| 5D9557 | 2133X152X19 | 15 | 5/8" |
| 5D9558 | 1828X203X19 | 13 | 5/8" |
| 5D9559 | 2133X203X19 | 15 | 5/8" |
| 7D1577 | 2133X203X19 | 15 | 3/4" |
| 7D1949 | 2438X203X19 | 17 | 3/4" |
| 5B5564 | 1828X152X16 | 8 | 5/8" |
| 5B5562 | 2133X152X16 | 9 | 5/8" |
| 4T2237 | 2438X203X25 | 17 | 5/8" |
| 4T2242 | 2133X203X25 | 15 | 5/8" |
| 4T2968 | 1828X203X16 | 13 | 5/8" |
| 5D9732 | 2438X203X19 | 17 | 5/8" |
| 9W2301 | 2438X152X13 | 10 | 5/8" |
| 9W2299 | 2133X152X13 | 9 | 5/8" |
| 4T3007 | 1828X203X19 | 13 | 5/8" |
| 4T3036 | 2133X203X19 | 15 | 5/8" |
| 4T2969 | 2133X203X16 | 15 | 5/8" |
| 5D9562 | 1828X203X16 | 13 | 5/8" |
