Rubber pad is one kind of improved and extended product of rubber rack, they main are begin installed on steel tracks, its character is easy to installation and do not damage the surface of road.
Range of application :
Excavator , Paver , Tractor , Loading machinery , Non excavator machinery , Grasp machinery , Drilling Machinery ……

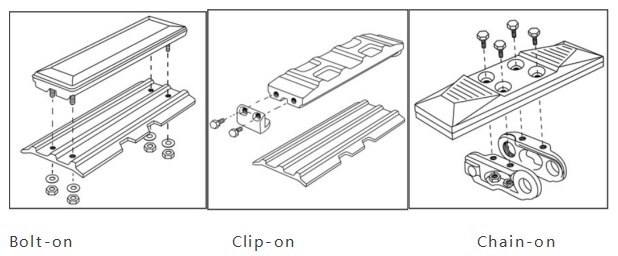

Rubber pad type
1. Bolt-on: Work if your existing steel pads have pre-drilled holes
2. Clip-on: Use clips that wrap around the pad and work with most styles of pads.
3. Chain-on : Bolt directly to the chain so there is no triple-grouser shoe involved
Bolt-on product we can supply
|
Bolt-on |
|||||
| Type | Pitch | h | L*W*H | Bolt | D*d |
| 230BA | 90 | 15 | 230*60*35 | M12*25 | 150*0 |
| 230BB | 101 | 16 | 230*70*37 | M12*25 | 170*0 |
| 230BC | 101 | 16 | 230*70*37 | M12*25 | 150*0 |
| 250BA | 101 | 16 | 250*70*37 | M12*25 | 200*0 |
| 300BA | 101 | 16 | 300*70*37 | M12*25 | 200*0 |
| 300BB | 101 | 16 | 300*70*37 | M12*25 | 200*0 |
| 350BA | 101 | 16 | 350*70*37 | M12*25 | 200*0 |
| 350BB | 101 | 16 | 350*70*37 | M12*25 | 250*0 |
| 350BC | 135 | 14 | 350*106*37 | M12*25 | 250*46 |
| 350BD | 135 | 14 | 350*106*37 | M12*25 | 290*46 |
| 380BA | 135 | 14 | 380*106*37 | M12*25 | 300*46 |
| 400BA | 135 | 14 | 400*106*37 | M12*25 | 300*46 |
| 400BB | 135 | 18 | 400*106*44 | M12*25 | 300*46 |
| 400BC | 135 | 14 | 400*106*37 | M12*25 | 300*46 |
| 400BD | 140 | 18 | 400*115*44 | M14*25 | 300*52 |
| 400BE | 140 | 18 | 400*115*44 | M14*25 | 350*52 |
| 450BA | 135 | 14 | 450*106*37 | M12*25 | 350*46 |
| 450BB | 154 | 20 | 450*124*47 | M14*25 | 350*58 |
| 450BC | 154 | 20 | 450*124*47 | M14*25 | 350*58 |
| 450BD | 140 | 18 | 450*115*44 | M14*25 | 350*52 |
| 475BA | 171 | 20 | 470*136*54 | M16*30 | 350*60 |
| 500BA | 171 | 20 | 500*136*54 | M16*30 | 400*60 |
| 500BB | 175 | 26 | 500*126*58 | M16*30 | 400*57 |
| 600BA | 190 | 26 | 600*140*67 | M20*35 | 400*69 |
| 600BB | 171 | 20 | 600*136*54 | M16*30 | 500*60 |
| 700BA | 171 | 20 | 700*136*54 | M16*30 | 600*60 |
| 200BP | 0 | 200*95*30 | M14 | 130*0 | |
| 260BP | 155.6 | 22 | 260*130*50 | M14 | 200*57 |
| 300BP | 155.6 | 22 | 300*130*55 | M14 | 220*57 |
| 350BP | 155.6 | 22 | 350*130*55 | M14 | 270*57 |
| 400BP | 155.6 | 22 | 400*130*60 | M14 | 300*57 |
| 260BN | 140 | 18 | 260*120*50 | M14 | 190*52 |
| 300BN | 158 | 18 | 300*130*50 | M14 | 237*57 |
| 260BM | 140 | 18 | 260*120*50 | M14 | 200*55 |
| 300BM | 158 | 18 | 300*130*50 | M14 | 137*54 |
| 300B2 | 155.6 | 18 | 300*130*50 | M14 | 220*0 |
| 300B4 | 155.6 | 18 | 300*130*50 | M12 | 220*45 |
| 320B2 | 155.6 | 18 | 320*130*50 | M14 | 220*0 |
| 320B4 | 155.6 | 18 | 320*130*50 | M12 | 220*45 |
| 350B2 | 155.6 | 18 | 350*130*50 | M14 | 270*0 |
| 350B4 | 155.6 | 18 | 350*130*50 | M12 | 270*45 |
| 260BL | 0 | 260*155*36 | M12 | 235*60 | |
| 310BL | 0 | 310*155*36 | M7/16 | 284*60 | |
| 355BL | 0 | 355*155*36 | M7/16 | 325.4*60 | |
