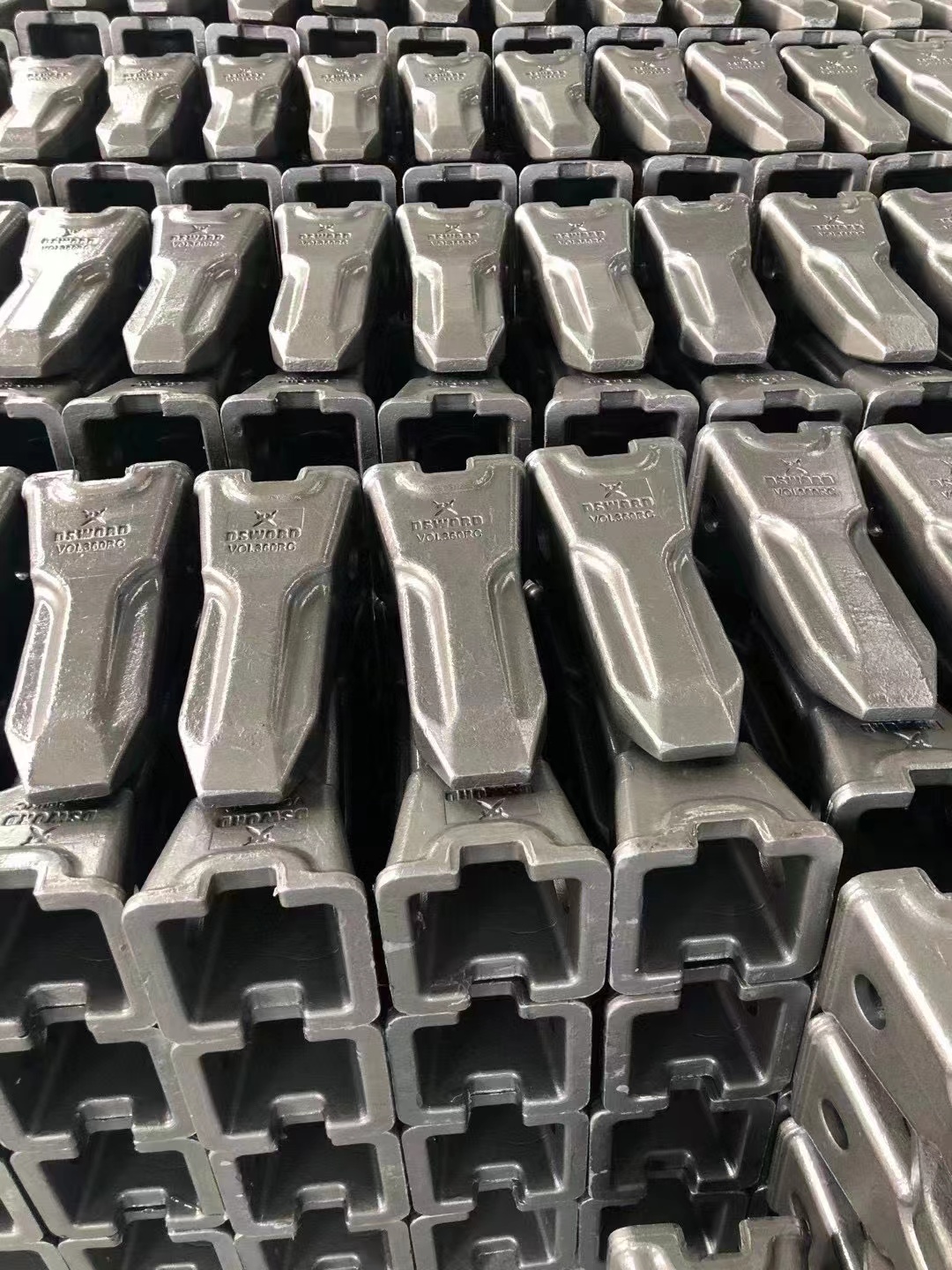

PC200RC DH220RC E325RC/SK330 Forging Bucket Tooth

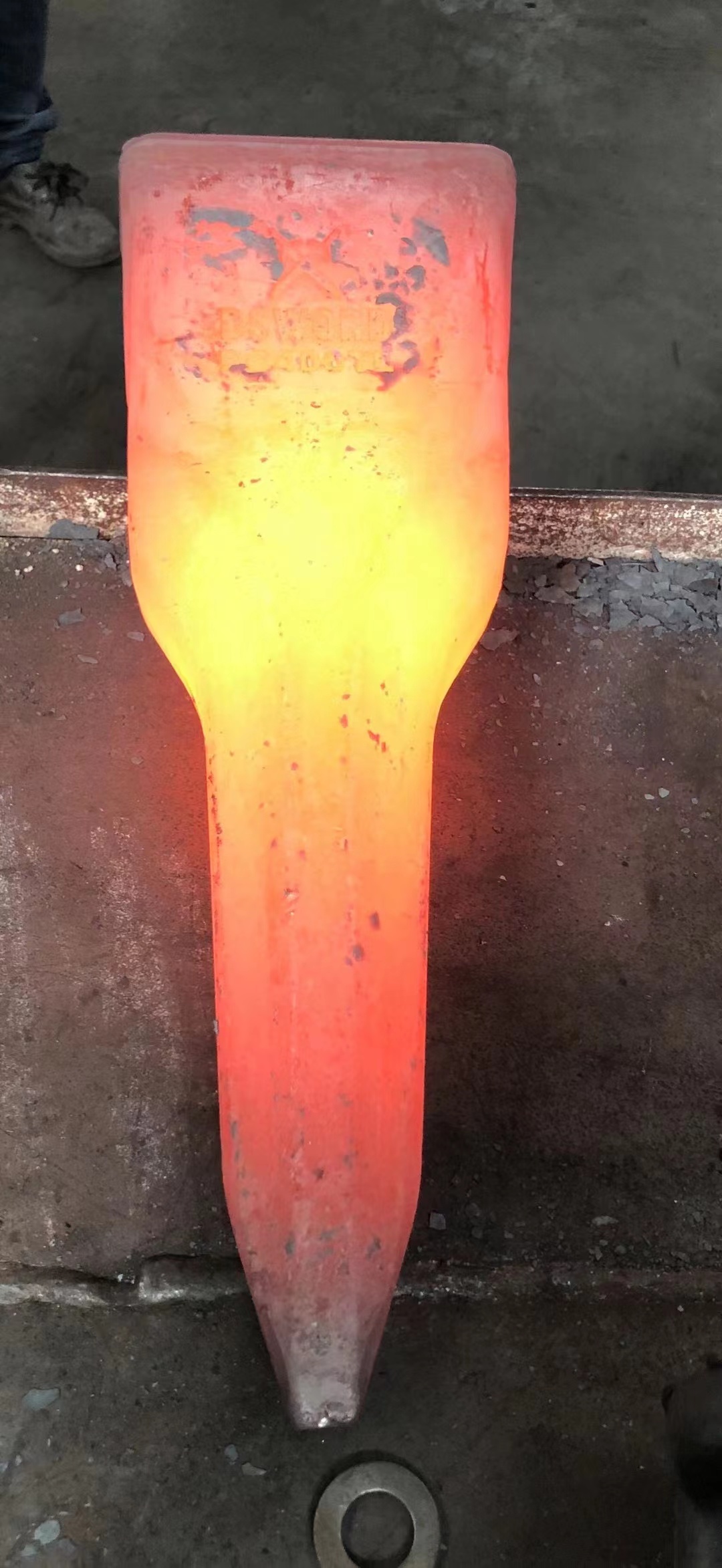

Forging Bucket Tooth
PART NUMBER MODEL U′WT(KG) TOTAL LENGTH DIAMETER
205-70-19570 PC200RC 5.8 265 ∅29
205-70-19570 PC200RCQ 4.7 ∅29
207-70-14151 PC300RC 10 310 ∅30
207-70-14151 PC300RC(Q) 8.5 305 ∅30
208-70-14152 PC400RC 14.2 345 ∅35
2713-1217 DH220RC 5.7 257 ∅23
2713-1219 DH300RC 7.8 288 ∅25
2713-0032 DH360RC 11 314 ∅27
2713-1236 DH420RC/DH500 16.3 350 ∅29.5
1U3352 E320RC 7.3 275 ∅26
1U3352 E320RC 8.5 285 ∅26
7T3402RC E325RC/SK330 10.6 310 ∅27
9W8452 E330RC 13.7 336 ∅30.4
9W8552RC E345RC 24.2 390 ∅35
14530544RC EC210RC 7.7 288 ∅28
14536800RC VOL360RC/EC460 15.5 341 ∅34.5
EC480RC 20.3 372 ∅38
205-70-19570TL PC200TL 5.5 ∅29
14536800TL VOL360TL 12 430 ∅34.5
208-70-14152TL PC400TL 12.5 410 ∅35



Hardness ≥51
Impact Energy ≥28
Mpa  Tensile Strength ≥1800
Mpa  Yield Strength ≥1800

Post time: Mar-01-2022
