Wrench in Hydraulic Torque Wrench

Features:Inheriting decades of technology and manufacturing techniques Sleek and streamlined design, incorporating contemporary industrial design trends, combines strength and flexibility Maximum working pressure: 70MPa9 models, ranging from 223-53084Nm, covering the widest range of bolt sizes The maximum torque of the hollow hydraulic wrench can reach 120000Nm, constant torque output, repeatability ± 3%Lighter weight and a variety of interchangeable heads to choose from The reaction arm can be customized according to the site space.

hydraulic-wrench-details-1
hydraulic-wrench-details

Application industry:Shipbuilding industry, petrochemical industry, wind power, hydropower, thermal power, mining, machinery, steel mills, rubber, pipeline and other industries.

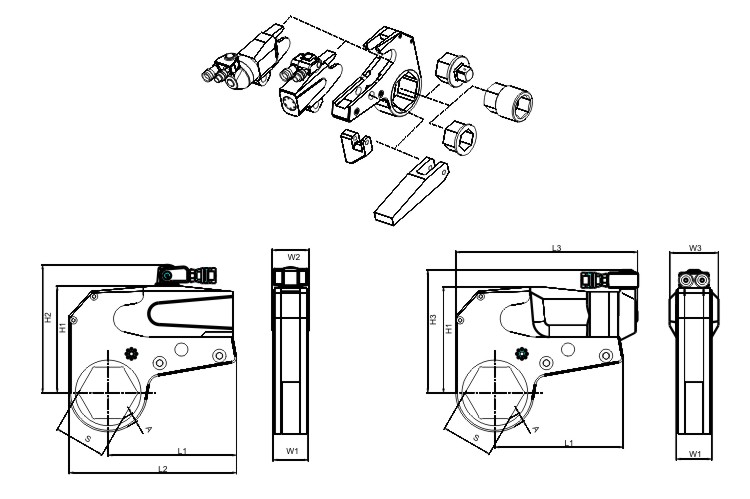

hydraulic-wrench-drawing

GT-1 GT-3 GT-4 GT-6 GT-8 GT-15 GT-25 GT-30 GT-35 GT-50
Torque 223 332 524 748 1183 1952 3307 4344 5308 7371
Nm 2230 3324 5242 7479 11830 19523 33071 43435 53084 75716
Nut range (S) 36-55 41-60 46-80 55-85 70-105 80-115 90-130 100-135 120-145 130-180
Weight  (kg) 2.1 2.9 4.5 7.5 8.9 17.3 25.2 32.4 35.5 47.8
L1 120.5 145 156 179 207 237 273 322 338 382
L2 156 185 202 232 270 309 361 422 447 517
L3 191 208 232 256 291 335 383 435 456 539
H1 100 113 119 145 168 197 230 263 280 320
H2 144.5 156 161 187 210 197 272 302 345 383
H3 142 149 152 179 200 237 255 277 294 400
W1 34 36 42 45 53 64 70 80 84 94
W2 36 38 46 49 57 68 78 88 92 102
W3 50 50 60 65 75 90 100 105 118 140
A 8.3 9.4 11.7 12.8 14.2 18.2 21.3 23.7 24.8 30.5
