Segment for bulldozer part,segment group,sprocket D5 segment

Short Description:

1. Material: Alloy Steel, Carbon Steel, Stainless Steel, Hardend & Tempered Steel, Cast Iron,Aluminum, Copper, Brass and so on
2. Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carburizing Quenching and so on.
3. Inspection: All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
4. Durable, Good Wear Resistance
5. Good quality with reasonable price, timely delivery and great customer service.

Send email to us Download catalog

Product Detail

Product Tags

Segment group Product Information

Material	40SiMnTi
Finish	Smooth
Colors	Black or yellow
Technique	Forging casting
Surface Hardness	HRC52-58
Warranty time	2000 hour
Certification	ISO9001-9002
FOB Price	FOB Xiamen USD 200-2000/Piece
MOQ	$4000.00
Delivery Time	Within 30 days after contract established

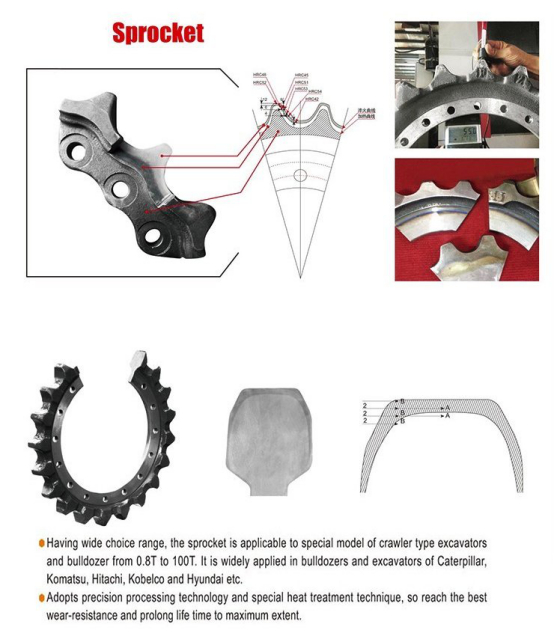

2.Design / Structure / Details Pics

Sprocket (7)459

3.Advantages / Features:

Undercarriage is adopting through hardening system and spraying quenching system while complying with the stringent ISO System. We are able to assure the part has excellent wear resistance even in the most severe working conditions.

We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.

Partial list

Forgin segment :

We have the forged segments for Caterpiller ,

D9,D8K,D8N,D7G,D6D,D6D,D6C,D5,D4

And Komatsu D50,D60,D65,D85,D155 with good quality and most competitive price .

we have segment promostion list as follow for your reference,welcome to inqury

Model	Part number	Pcs in 1rim	Total Weight KGS
D40,D50,D41, D45,D50A,D53, D63,D68	131-27-42220	9pcs in one rim	53.1
D60,D60A-6/7/8 D65A/E-6/7	141-27-32411	9pcs in one rim	71.1
D80A/E-18/21, D85A/E-18/21	155-27-00151	9pcs in one rim	83.7
D155	175-27-22325	9pcs in one rim	105.3
D5,D5B	6Y5244	9pcs in one rim	47.7
D6C,D6D,D6E,D6G,963	5S0050,6P9102	5pcs in one rim	62.5
D6H	7G7212	5pcs in one rim	62.6
D7E,D7F,D7G,571, 577,973,977	4S8970	5pcs in one rim	72.5
D8K,D8H	2P9510	9pcs in one rim	103.5
D9R	7T1246	5pcs in one rim	119
