Sell TD-20H Suspension spare parts 655425C3 drive sproket

Short Description:

we can offers the widest selection of Caterpillar/Doosan/CAT/SANY/Komatso/Hitachi/Liugong/Sumitomo/Volvo drive sprocket for digger for every application:
For track-type machines ranging from 1 to 300 tons.3, 4, 5 and 6 teeth.
More than 80 different segment groups, to match any chain or application.

Send email to us Download catalog

Product Detail

Product Tags

Excavator Sproket Product Information

Material	40Mn
Finish	Smooth
Colors	Black or yellow
Technique	Forging casting
Surface Hardness	HRC52-58
Warranty time	2000 hour
Certification	ISO9001-9002
FOB Price	FOB Xiamen USD 200-2000/Piece
MOQ	$4500.00
Delivery Time	Within 20-25 days after contract established

2.Excavator Sproket Design / Structure / Details Pics

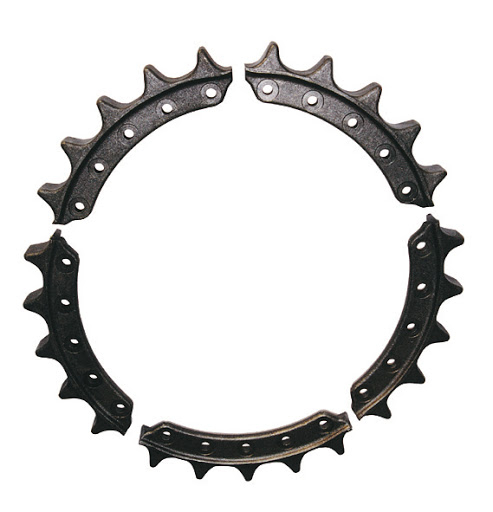

Sprocket (11)508

D7G segment 8E4675-Komatsu

3.Excavator Sproket Advantages / Features:

Undercarriage is adopting through hardening system and spraying quenching system while complying with the stringent ISO System. We are able to assure the part has excellent wear resistance even in the most severe working conditions.

We are using advance machining centre,horizontal and vertical CNC machining to execute processes such as machining, drilling, threading and milling to ensure the qulity and precision of each component to ensure the accuracy of assembly dimensions. This is to maximize the life span of each component and minimize production cost per hour.

4.Partial list

Forgin segment :

We have the forged segments for D9,D8K,D8N,D7G,D6D,D6D,D6C,D5,D4H

And D50,D60,D65,D85,D155 with good quality and most competitive price

we have sproket promotion list as follow for your reference,welcome to inquiry.

ITEM LIST for SPROCKET
No	Maker	Description	Model	Berco P/NO	OEM P/NO	Weight
1		Sprocket	E70B		6I9336
2		Sprocket	CAT307		096-2144
3		Sprocket	E120B	CR5337	099-0219	40Kgs
4		Sprocket	E200B / EL200B	CR5338	E84690100/ 964327	48Kgs
5		Sprocket	EL240B	CR5339	959779	53Kgs
6		Sprocket	E300B / EL300 / EL300B	CR5340	099-4129	88Kgs
7		Sprocket	E311/E110B/E312	CR6358	4I7472	39Kgs
8		Sprocket	315	CR5606	102-8134	49Kgs
9		Sprocket	320 / 320L / 322 / 322N	CR5602	8E9805	38Kgs
10		Sprocket	325 / 325L	CR5604	6Y4898	60Kgs
11		Sprocket	330 / 330L	CR5861A	6Y5685	86Kgs
12		Sprocket	345B		124-3296	87Kgs
13		Sprocket	350	CR6402	8E6974	95Kgs
14		Sprocket	375	CR6377	8E4686	142Kgs
15		Sprocket	215	CR4740	6A7539
16		Sprocket	225	CR5334	9C2646
17		Sprocket	215-5	CR3974	3T9154
18		Sprocket	215B	CR4741	8V4734	78Kgs
19		Sprocket	225-4	C25A-5000	3V1727
20		Sprocket	225-4-R	OK0483	3T9153	30Kgs
21		Sprocket	225-5	CR5090	6W2451
22		Sprocket	225-5-R	CR3979	3T9152	33Kgs
23		Sprocket	235-6		8K2743
24		Sprocket	235-7	CR5097	3V4527
25		Sprocket	235-7 R	CR3980	7T1311	75Kgs
26		Sprocket	245-8		2M8810
27		Sprocket-Rim	933-R	CR1445	1M6226	29Kgs
28		Sprocket	951B RIM30	CR2050	8A1378
29		Sprocket	951C	CR2967	4V5374
30		Sprocket	951C-R	CR2968	4V5376	60Kgs
31		Sprocket	955E-R	CR1447	3K5841
32		Sprocket	955H-R	CR1451	3K7677
33		Sprocket	955K-R	CR2247	6K1798
34		Sprocket	D3-D3B-R	CR3006	6S8270	27Kgs
35		Sprocket	D3-D3C-R	CR4752	6Y1244
36		Sprocket	D3C	CR4751	8Y0622
37		Sprocket	D4	CR1461A	1M1777	34Kgs
38		Sprocket	D4D-E	CR2595	4V4106	74Kgs
39		Sprocket	D4D-E-R	CR2594	4V4107	40Kgs
40		Sprocket	D4-R	CR0963	5H9107	34Kgs
41		Sprocket	D5-R	CR2194	5S4822
42		Sprocket	D6	CR1818	8M6041	43Kgs
43		Sprocket	D6C-R	CR1844	9M3818
44		Sprocket	D6-R	CR1819	3H2643
45		Sprocket	D7E-R	CR1591	5M3022
46		Sprocket	D7-R(23)		112-0018	73Kgs
47		Sprocket	D7-R(26)	CR1456	3S1456
48	DaeWoo	Sprocket	S50		2108-1025BP-S	17Kgs
49	DaeWoo	Sprocket	S130 / S130-3 / DH130-2		2108-1005-A	45Kgs
50	DaeWoo	Sprocket	S200LC / S220LC		2108-1014A	43Kgs
51	DaeWoo	Sprocket	S220LC-3 / S220-5		2108-1028A	44Kgs
52	DaeWoo	Sprocket	S170 / S170-3		2108-1019	44Kgs
53	DaeWoo	Sprocket	S280LC / S280LC-3		2108-1015A	73Kgs
54	DaeWoo	Sprocket	S320		2108-1024A	94Kgs
55	DaeWoo	Sprocket	S400/S360LC-3		2108-4003A	76Kgs
56	DaeWoo	Sprocket	S450LC-3		2108-1031	104Kgs
57	DaeWoo	Sprocket	S450		2108-9401	104Kgs
58	Hitachi	Sprocket	EX60-1		1010447	27Kgs
59	Hitachi	Sprocket	EX60-2		1012495	27Kgs
60	Hitachi	Sprocket	EX60-3			27Kgs
61	Hitachi	Sprocket	EX100/EX120	FT3056	1010325	39Kgs
62	Hitachi	Sprocket	EX150	FT3057	1008249	48Kgs
63	Hitachi	Sprocket	EX100M		1007849	54Kgs
