Sprocket Segment D6 D8N D10T

Short Description:

D3C 931B 933B 6Y2047 D4D D4H 7G0841 D4H-HD D5B D5 D5K D5M D5N S01045L0M00 D5B 953B 7P2636 D5C 8E7298 D5H D5H-HD S01055L0M00 D6C D6D 963 6P9102 1171618 D6H 7G7212 D6R 8E9041 D6M 6I8078 D7F D7G 997L 3P1039 D7R D8N D8R 9W0074 6Y3928 D8H D8K 2P9510 D9G D9H D9L D9N D9R 7T1246 D10N/R 6T9538 943 7P6504 953C 6Y3242 955K/L 6K1430 977K/L 5S0058

Send email to us Download catalog

Product Detail

Product Tags

D6 Sprocket Segment

D6 Sprocket
VRO106B5
SPROCKET ASSEMBLY
PRODUCT FEATURES:
Weight: 80.5 Kg.
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
D6 31A-1-UP,D6 32A-1-UP,D6 8U-10971-UP,D6 9U-29219-UP,D6B 37A-1-494,D6B 37A-495-UP, D6B 44A-1UP
CROSS REFERENCE(ORIGINAL CODES):
BERCO
CR1818
CATERPILLAR
4F6060,4F6061,7B4795,7B4810,8M6041
ITM
RO1060BOM01

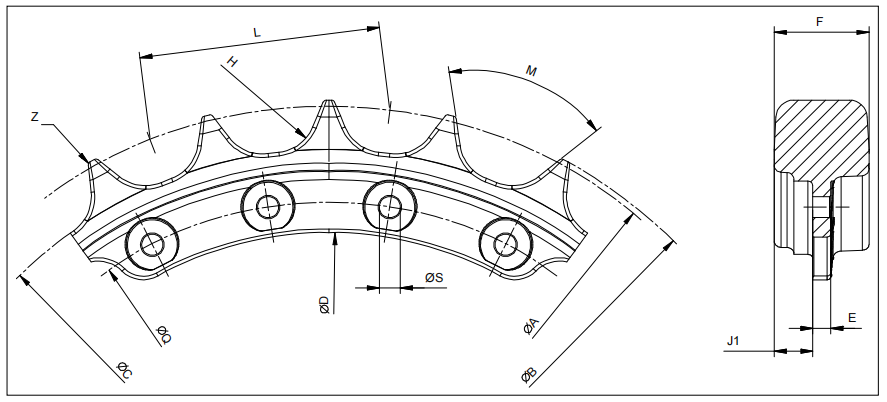

D8N Segment

Z:5	Holes Numbers: 5	ΦA:868,15	ΦB:876
ΦC: 784	D: 633	E:19	F:88
H: 40,7	J1:44	L:215,9	Mο:37
ΦQ: 691,38	ΦS:20,75

"VS0108K005SEGMENT
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
578 8HB-1-UP, D7H 2RG-1-UP,D7H 4AB-1-UP, D7H 4LG-1-UP, D7H 5BF-1-5954,D7H 5BF-5955-UP,D7H 77Z-1UP, D7H 79Z-1-2188, D7H LGP 3XG-1-UP, D7H LGP 3YG-1-UP, D7H LGP 4FG-1-330,D7H LGP 4FG-331-5621D7H LGP 4FG-5622-UP, D7HLGP 5WB-1-764, D7H LGP 80Z-5524-UP, D7H LGP 80Z-764-5523, D7H LGP 82Z-1.UP, D7H XR -24,9, D7H XR LAST TYPE, D7R 2HR-1-UP, D7R 3ZR-1-UP,D7R 5KZ-1-UP, D7R 5MR-1-UP, D7R ACS-1UP, D7R AEC-1-UP, D7R BRM-1-UP, D7R BRP-1-UP, D7R LGP 3DN-1-UP, D7R LGP 4SR-1-UP, D7R LGP 6ER-1-UPD7R LGP 9HM-1-UP, D7R LGP ABJ-1-UP, D7R LGP AFG-1-UP, D7R LGP BNM-1-UP, D7R LGP BNX-1-UP, D7R XR2EN-1-UP, D7R XR 5MR-1-UP, D7R XR ADW-1-UP, D7R XR AGN-1-UP, D7R XR BPK-1-UP, D7R XR BPT-1-UP, D8N1XJ-1-UP, D8N 5TI-1-UP, D8N 7TK-1-UP,D8N 9TC-1-UP, D8R 6YZ-1-UP,D8R 7XM-1-UP,D8R 9EM-1-UP, D8RAKA-1-UP
CROSS REFERENCE(ORIGINAL CODES):
BERCO
CR4477,CR4539,CR5049A
CATERPILLAR
114-6413,162-9534,173-0947,173-0948,314-5462,6T3197,6Y2354,7T9773
ITM
S01082K1M05"

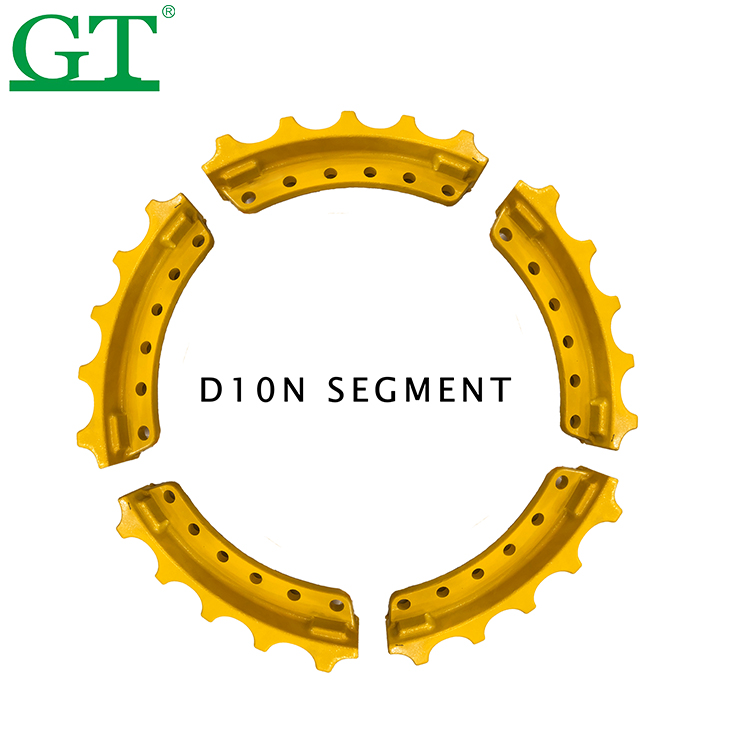

D10N Segment

VSO110N5SEGMENT GROUP (5 PCS)
PRODUCT FEATURES:
Weight: 138.35 Kg.
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
D10N 2YD-1-UP,D10N 3SK-1-UP, D1OR 3KR-1-UP, D1OR AKT-1-UP, D1OT RJIG-1-UP
CROSS REFERENCE (ORIGINAL CODES):
BERCO
CR5047
CATERPILLAR
112-0510
ITM
S01105NOM00
VPI
VCR5047V

D10T Segment

VSO110N5
SEGMENT GROUP (5 PCS)
PRODUCT FEATURES:
Weight: 138.35 Kg.
COMPATIBLE WITH THE FOLLOWING VEHICLES:
CATERPILLAR
D10N 2YD-1-UP, D10N 3SK-1-UP, D10R 3KR-1-UP, D1OR AKT-1-UP, D1OT RJG-1-UP
CROSS REFERENCE (ORIGINAL CODES):
BERCO
CR5047
CATERPILLAR
112-0510
ITM
S01105NOM00
VPI
VCR5047V
