Tapered equipment Drill bits

Short Description:

Our company button bits are manufactured from Tungsten Carbide and are available in round configurations.PengChengWu rods are developed and designed to give you straighter holes with less deviation and longer service life.
Color:Blank ,Yellow or Based on Customer requirements .

Remarks:
1.We also could design, develop and produce according to customer's requirements and drawings.
2.Blank and finished products are available.

Send email to us Download catalog

Product Detail

Product Tags

Drill bit design

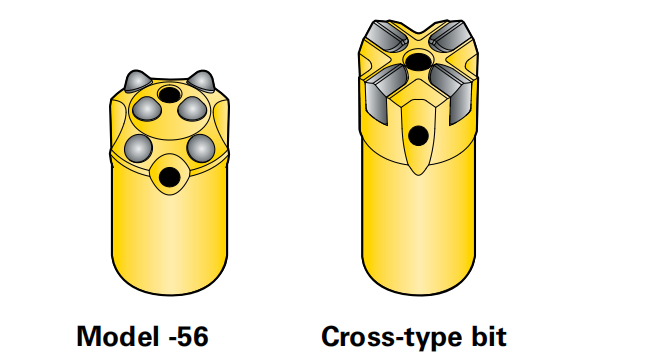

Model -56:All-round drill bit for medium hard to hard rock formations. Front and side flushing.

Cross-type bit:For hard and abrasive rock. Front and side flushing.

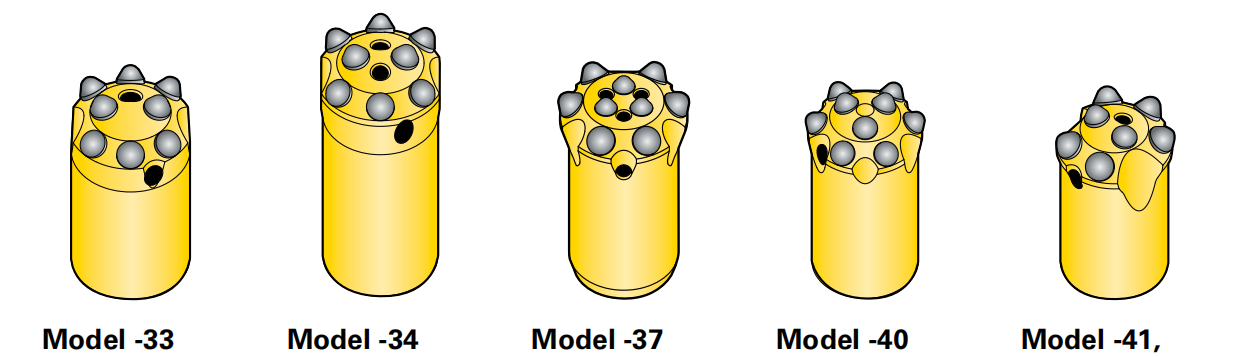

Model -33:All-round bit with six gauge buttons for medium hard to hard rock formations. Front and side flushing. Inclined front buttons.

Model -34:All-round bit for soft to hard rock formations. Two front flushing holes for optimal speed and less hole deviation. Inclined front buttons.

Model -37:All-round drill bit for soft, medium and hard rock with excellent flushing capacity. Front and side flushing.

Model -40:All-round bit for medium hard to hard rock. Side flushing only. Inclined front buttons.

Model -41, short skirt:All-round bit for medium hard to hard rock. Front and side flushing. Inclined front buttons.

Please obs

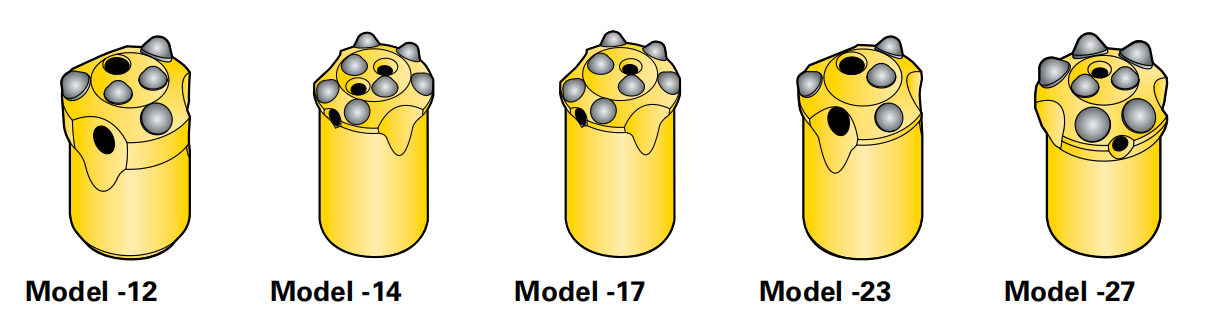

Model -12:For soft to medium hard rock formations. One front and two side flushing holes.

Model -14:For soft to medium hard rock. Two front and one side flushing hole.

Model -17:All-round drill bit for soft to medium hard rock. Front and side flushing. Diameters up to 34 mm.

Model -23:For soft and abrasive rock. Front and side flushing.

Model-27:All-round drill bit for medium hard to hard rock formations. Front and side flushing.Diameters from 35 mm.

erve that all button bits are manufactured over-sized 0,5–1,0 mm, meaning that for example a 36,0 mm bit is at least 36,5 mm as new. This is done because of the fast initial wear on button bits.

It is important to consider that the drilled hole could vary in size due to drilling conditions, drilling

practices and ground formation.

Drill bit parameter

Diameter		Product No.	Product code	Length		No. of buttons	Buttons × button diameter (mm)		Gauge buttons angle°	Front buttons angle°	Flushing hole		Weight approx. kg
mm	inch	Product No.	Product code	mm	inch	No. of buttons	Gauge	inch	Gauge buttons angle°	Front buttons angle°	Side	Centre	Weight approx. kg
BUTTON BIT - For 22 mm (7⁄8") hex. rod. 4°46'taper angle. Short skirt.
36	113⁄32	90510678	178-9036-14-67,39-20	50	131⁄32	7	5×7	131⁄32	35°		1	2	3
BUTTON BIT - For 22 mm (7⁄8") hex. rod. 11° taper angle. Short skirt.
32	1¼	90510100	179-9032-12-67,50-20	50	131⁄32	5	3×8	131⁄32	35°	–	2	1	3
32	1¼	90512816	179-9032-33-67,39-20	55	25⁄32	8	6×7	25⁄32	39°	15°	1	1	3
32	1¼	90510189	179-9032-56-67,50-20	50	131⁄32	6	4×7	131⁄32	35°	–	1	1	3
33	15⁄16	90512712	179-9033-40-67,52-20	50	131⁄32	9	6×7	131⁄32	40°	20°	2	–	3
33	15⁄16	90512801	179-9033-56-67,50-20	50	131⁄32	6	4×7	131⁄32	40°		1	1	2
34	111⁄32	90512881	179-9034-40-67,39-20	50	131⁄32	9	6×7	131⁄32	40°	20°	2	–	3
35	13⁄8	90512818	179-9035-41-67-L,39-20*	55	25⁄32	7	5×8	25⁄32	40°	15°	1	1	3
36	113⁄32	90509968	179-9036-27-67,39-20	50	131⁄32	7	5×8	131⁄32	35°		1	1	3
36	113⁄32	90510192	179-9036-56-67,50-20	50	131⁄32	6	4×7	131⁄32	40°	–	1	1	4
38	1½	90512968	179-9038-23-67,51-20	50	131⁄32	4	3×9	131⁄32	40°	–	2	1	3
38	1½	90509966	179-9038-27-67,39-20	50	131⁄32	7	5×9	131⁄32	35°		1	1	3
41	15∕8	90509962	179-9041-27-67,39-20	50	131⁄32	7	5×9	131⁄32	35°	–	2	1	3
43	111⁄16	90512898	179-9043-27-67,51-20	50	131⁄32	7	5x9	131⁄32	35°	–	2	1	4
BUTTON BIT - For 22 mm (7⁄8") hex. rod. 12° taper angle. Short skirt.
27	11∕16	90512895	177-9027-56-67,51-20	50	131⁄32	6	4×6	131⁄32	40°	15°	1	1	2
28	11∕8	90510695	177-9028-23-67,39-20	50	131⁄32	4	3×7	131⁄32	20°	–	1	1	1
28	11∕8	90516429	177-9028-56-67,51-20	50	131⁄32	6	4x6	131⁄32	35°		1	1	2
30	13∕16	90510181	177-9030-56-67,51-20	50	131⁄32	6	4×7	131⁄32	30°	–	1	1	2
32	1¼	90509650	177-9032-14-67,39-20	55	25⁄32	7	5×7	25⁄32	35°	–	1	2	3
32	1¼	90509841	177-9032-17-67,39-20	55	25⁄32	7	5×7	25⁄32	35°		1	1	2
32	1¼	90512817	177-9032-34-67,39-20	55	25⁄32	8	6×7	25⁄32	39°	15°	1	2	3
33	15⁄16	90512648	177-9033-14-67,39-20	55	25⁄32	7	5×7	25⁄32	35°	–	1	2	2
33	15⁄16	90509842	177-9033-17-67,39-20	55	25⁄32	7	5×7	25⁄32	35°		1	1	2
33	15⁄16	90003511	177-9033-34-67,39-20	55	25⁄32	8	6x7	25⁄32	35°	–	1	2	2
33	15⁄16	90513909	177-9033-41-67,39-20	55	25⁄32	7	5×8	25⁄32	40°	15°	1	1	2
34	111∕32	90509956	177-9034-27-67,39-20	55	25⁄32	7	5×8	25⁄32	35°		1	1	2
35	13∕8	90509535	177-9035-27-67,39-20	55	25⁄32	7	5×9	25⁄32	35°	–	1	1	2
36	113⁄32	90512721	177-9036-27-67,39-20	55	25⁄32	7	5×9	25⁄32	35°	–	1	1	3
37	115⁄32	90512710	177-9037-27-67,39-20	55	25⁄32	7	5×9	25⁄32	40°		1	1	3
38	1½	90512658	177-9038-17-67,39-20	55	25⁄32	7	5×9	25⁄32	40°	–	1	1	3
38	1½	90510676	177-9038-23-67,39-20	55	25⁄32	4	3×9	25⁄32	40°	–	1	1	2
38	1½	90509554	177-9038-27,39-20	55	25⁄32	7	5×9	25⁄32	35°		1	1	2
38	1½	90512669	177-9038-27-67,39-20	55	25⁄32	7	5×9	25⁄32	35°	–	1	1	2
41	15∕8	90512318	177-9041-27-67,39-20	55	25⁄32	7	5×9	25⁄32	35°	–	1	1	3
45	13∕4	90512619	177-9045-27-67,39-20	55	25⁄32	7	5×9	25⁄32	35°		1	1	3
