The Multifunctional Hydraulic Breaker

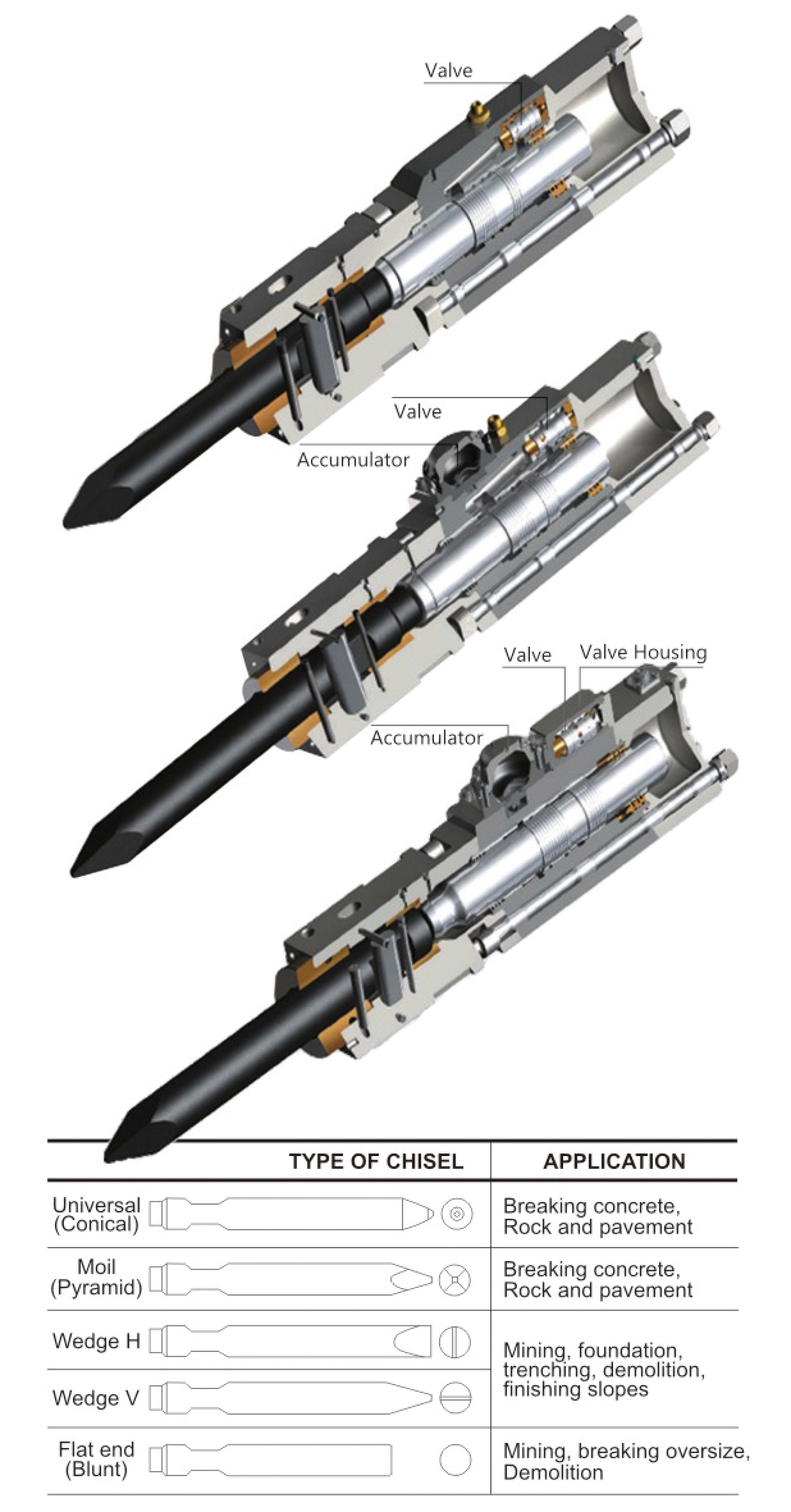

Hydraulic Breaker Main Structure

Back Head
Installed the oil connections (input /output) and the gas valve
Maximized energy
The nitrogen gas in the back head is compressed once the piston moves upward by the oil pressure and accumulation of the energy, which is converted into the blowenergy effectively as the piston descends.
Valve System
Easy to access of the external control valve.
Cylinder Regulator
The regulator increases working efficiency with regulating the breaker power and the number of impacts by controlling moving distance of the piston.
Valve Regulator
The Valve controls the oil flow and the rated pressure in the breaker
Accumulator
The accumulator is composed of a rubber film, is compressed by the nitrogen gas in the upper part and is connected with the cylinder at
the blow part.
Cylinder
The minimum hydraulic system enables the breaker to maximize efficiency for reciprocation of the piston where high and low tension
circulates.
-Cylinder Stability
The cylinder is manufactured by a precision machinery with the appropriate quality assurance, offering quality satisfaction.
Piston
The piston is installed in the cylinder, which converts the oil pressure into the impact power to break rocks.
-Durability
Quality proven materials in intensity, anti-wear, heat resistance, tenacity, anti-impact, internal pressure lengthen the life of piston.
-Post Management
The appropriate quality assurance system offers quality satisfaction.
Through Bolt
The 4 units of the bolts firmly fix the important components onto the breaker
Front head
The front head supports the breaker and assembly with the bush, buffering shocks from the chisel.
